Scorpion

SCORPION HK5-3220-955/1095KV MOTORS (HK5-3220)

P/N: HK5-3220

HK$1,272.00
HK$1,413.00 HK$1,272.00
Sale Back order

KV (⌀ x L)

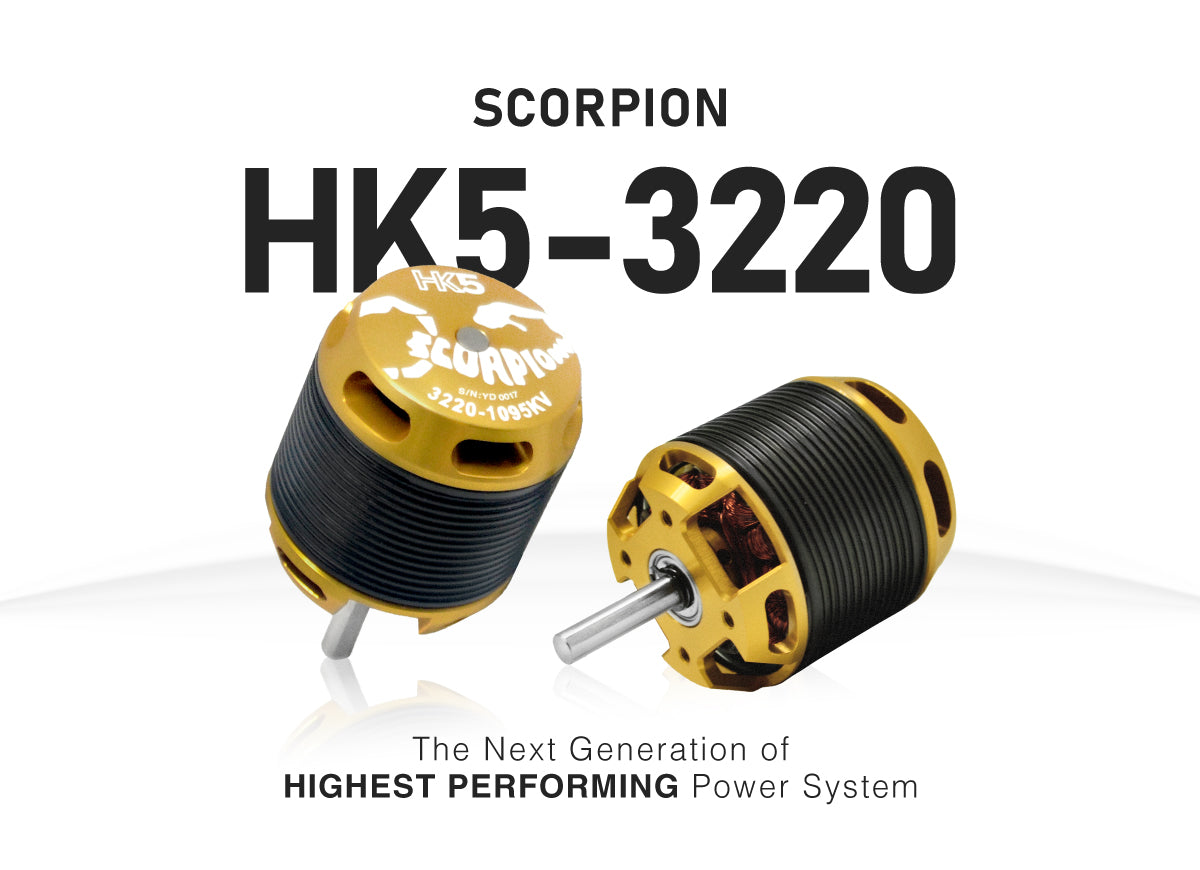

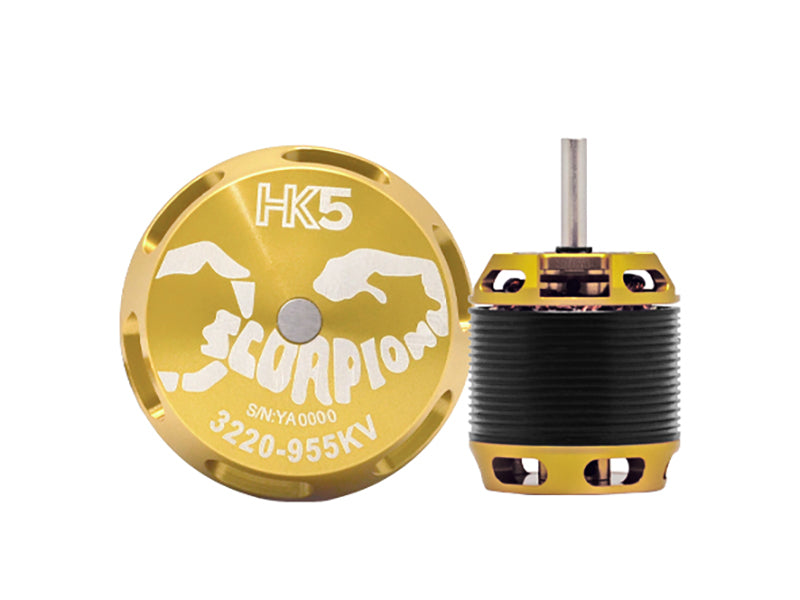

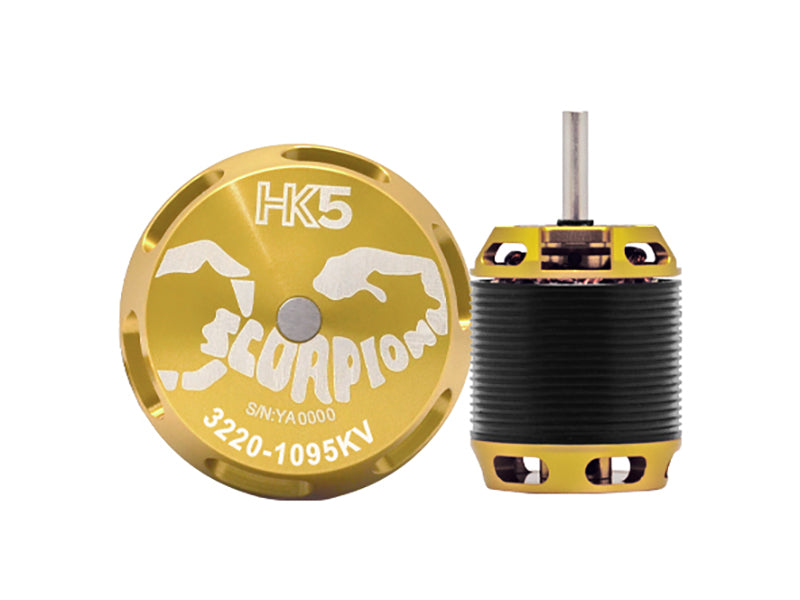

SCORPION HK5-3220-955/1095KV MOTORS

Technical specifications:

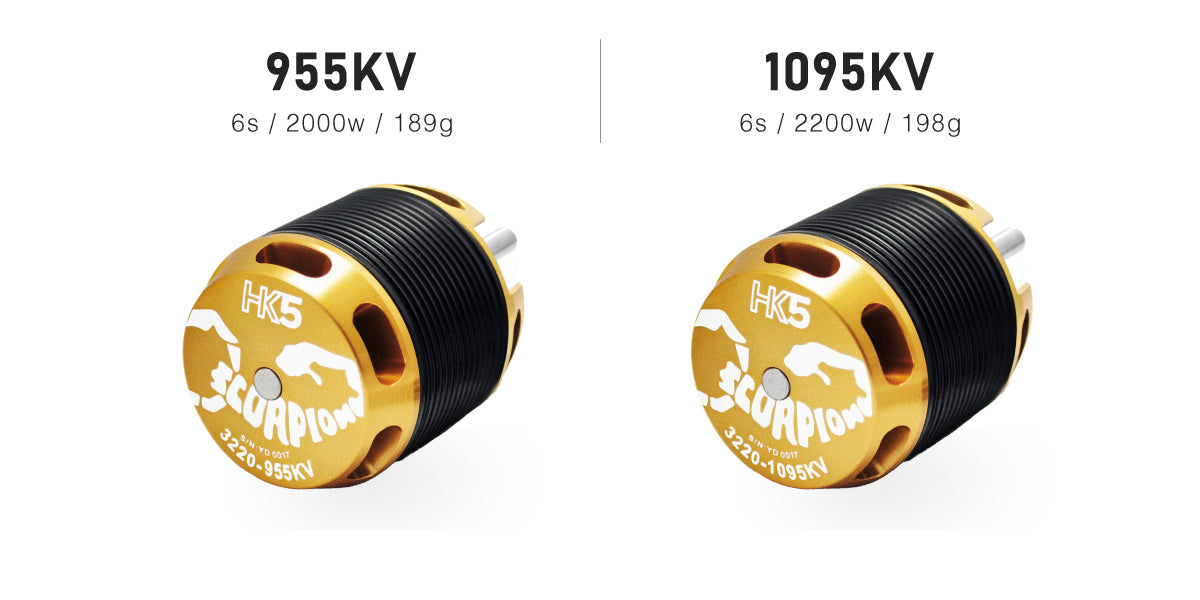

  • Motor KV: 955/1095KV RPM/V
  • Weight: 189/198g
  • Motor Body Dimensions: 40.95mm x 45.98mm
  • External Shaft Dimensions: 4.98mm x 22mm
  • Continuous Current: 75/65 Amps
  • Continuous Power: 1500/1665 Watts
  • Pear Current: 90/100 Amps (2 seconds)
  • Peak Power: 2000/2200 Watts (2 seconds)
  • Max. Lipo Cell*: 6s

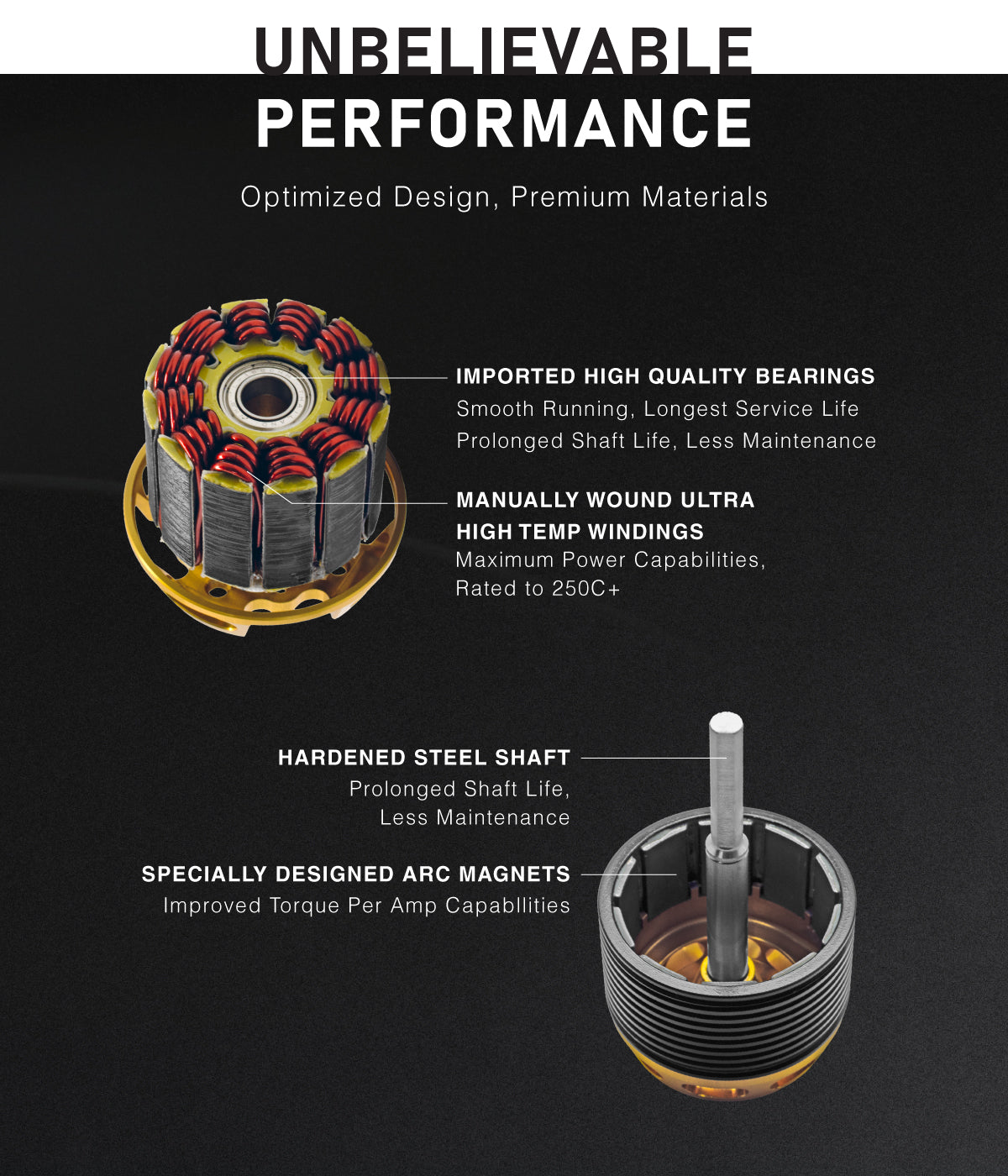

  • Stator Diameter: 32mm
  • Stator Thickness: 20mm
  • No. Stator Arms: 12
  • No. Stator Poles: 10
  • Motor Wind: 5+6T Delta / 5T Delta
  • Motor Wire: 1.05 / 1.15mm
