Scorpion

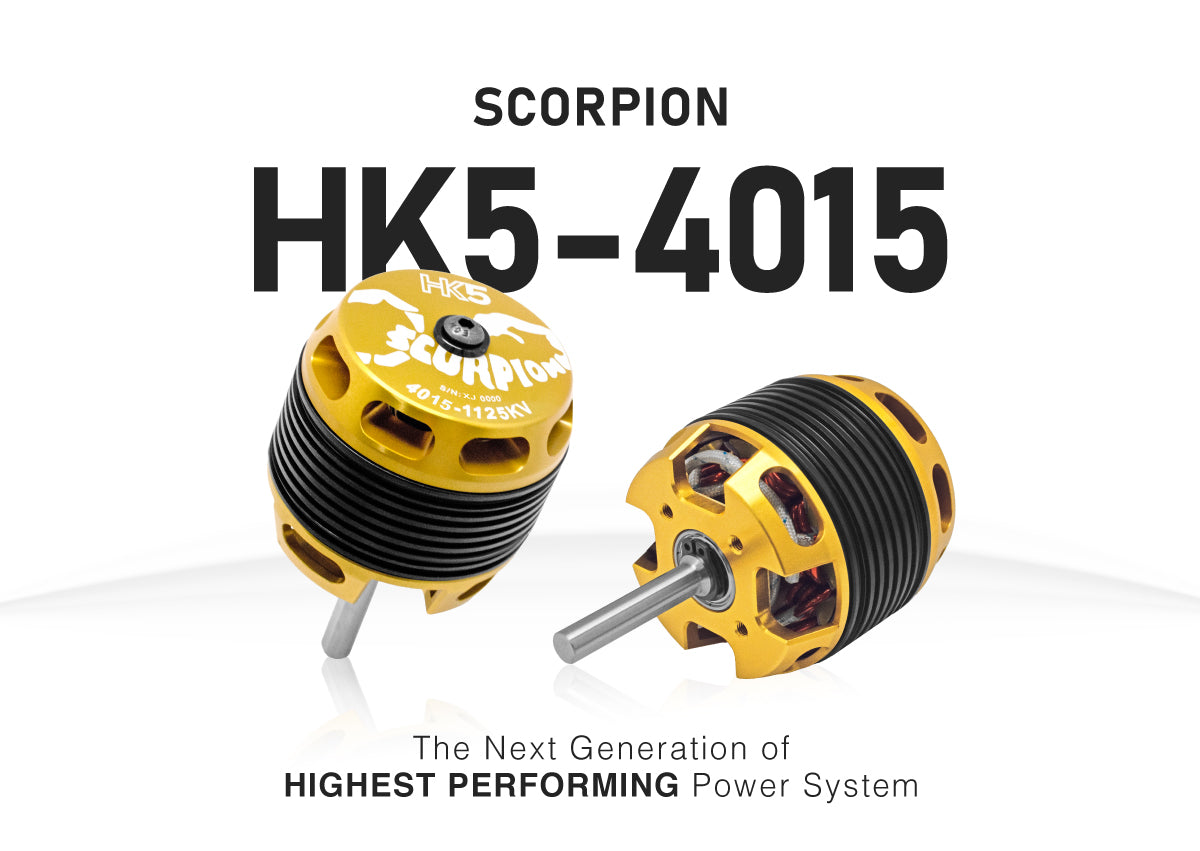

SCORPION HK5-4015-805/1125KV MOTORS (HK5-4015)

P/N: HK5-4015

HK$1,343.00
HK$1,492.00 HK$1,343.00
Sale Back order

KV

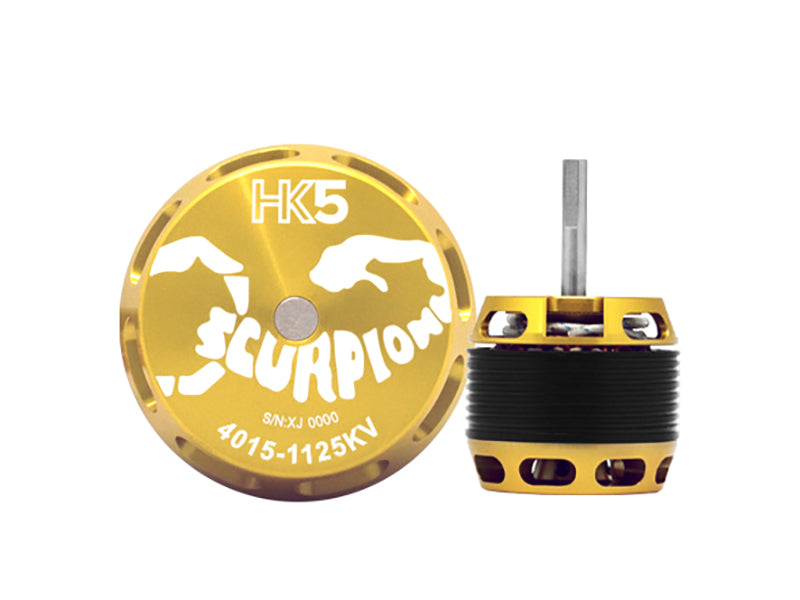

SCORPION HK5-4015-805/1125KV MOTORS

Technical specifications:

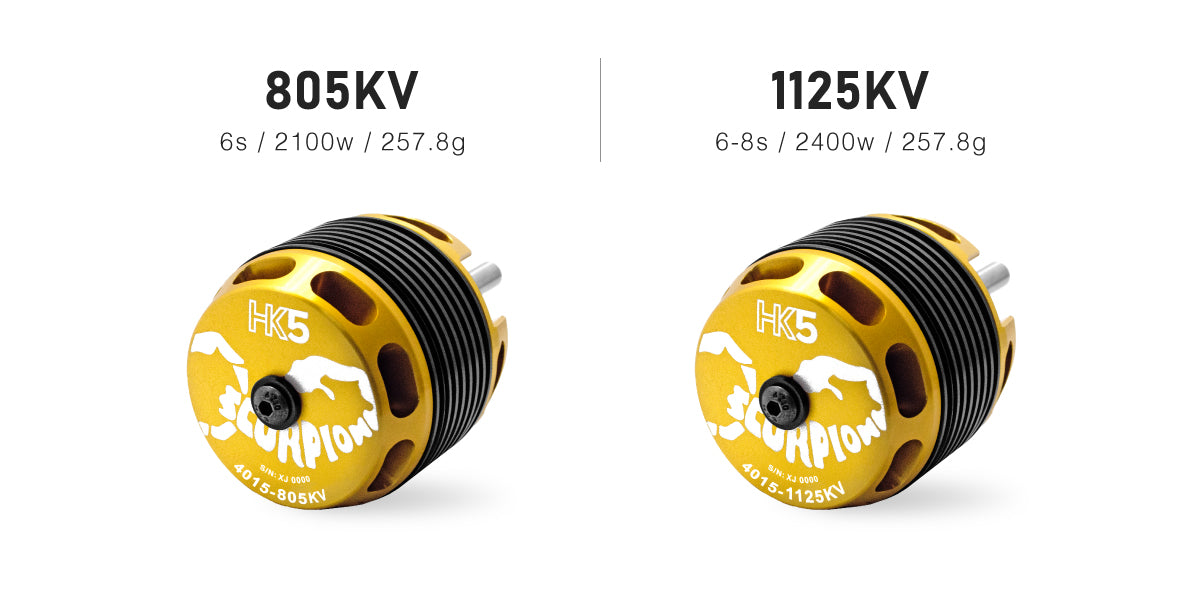

  • Motor KV: 805/1125KV RPM/Volt
  • Weight: 257.8g
  • Motor Body Dimensions: 49.5mm x 45.5mm
  • External Shaft Dimensions: 5.98mm x 32mm
  • Continuous Current: 60/68 Amps
  • Continuous Power: 1330/1500  Watts
  • Peak Current: 95/100 Amps (2 seconds)
  • Peak Power: 2100/2440 Watts (2 seconds)
  • Max Lipo Cell*: 6s/6s-8s
  • Stator Diameter: 40mm
  • Stator Thickness: 15mm
  • No. Stator Arms: 12
  • No. of Stator Poles: 10
  • Motor Wind: 7T Delta (805KV) / 5T Delta (1125KV)
  • Motor Wire: 1.18 (805KV) / 1.4mm (1125KV)
