Scorpion

SCORPION HK5-5030-385/465/515KV MOTORS (HK5-5030)

P/N: HK5-5030

HK$2,949.00
HK$3,276.00 HK$2,949.00
Sale Back order

KV x L

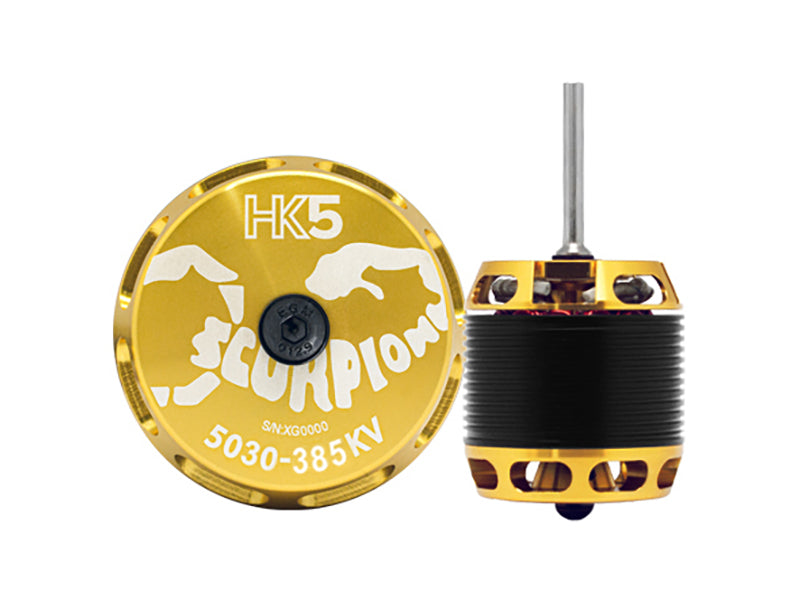

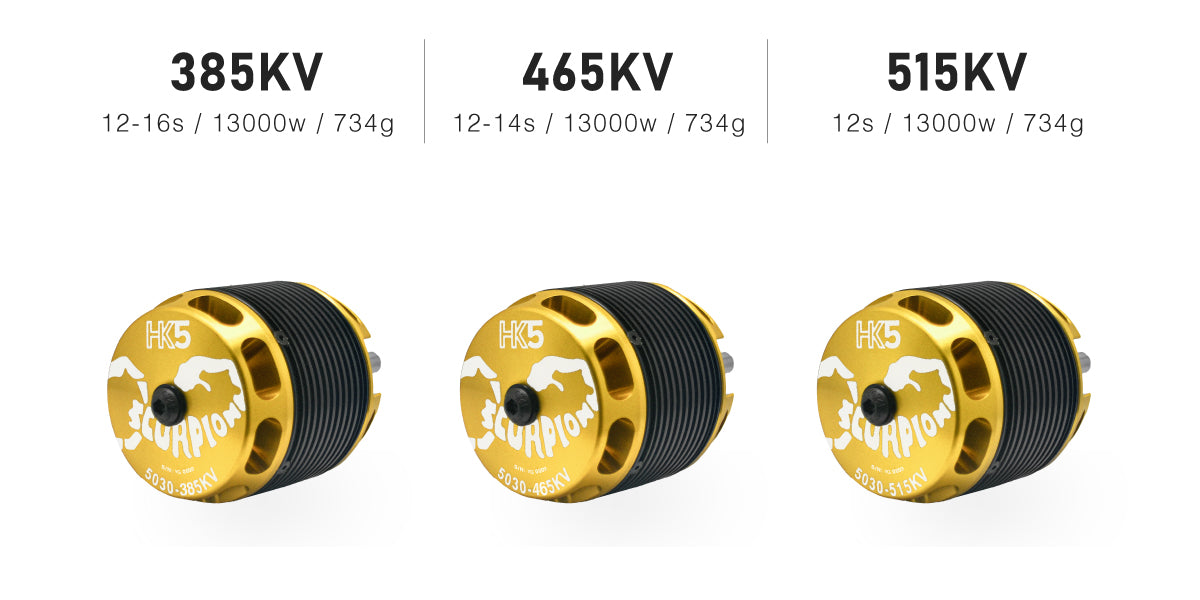

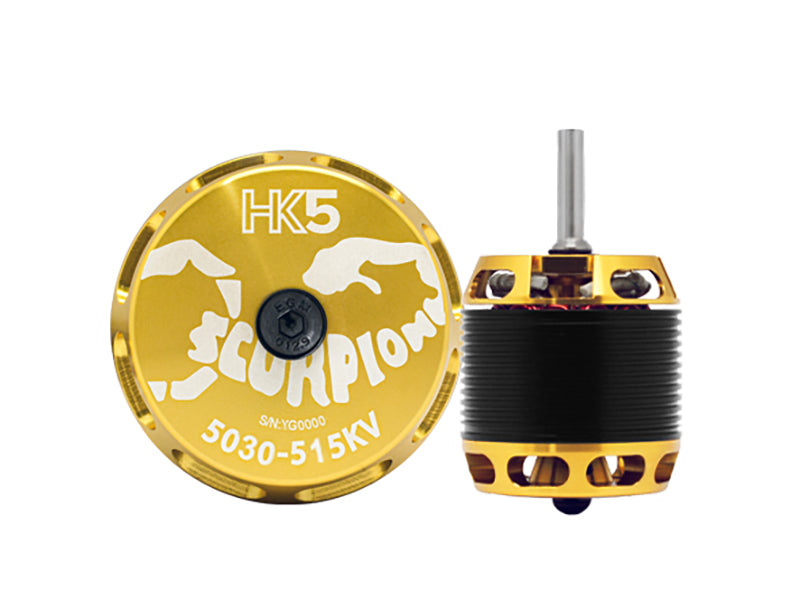

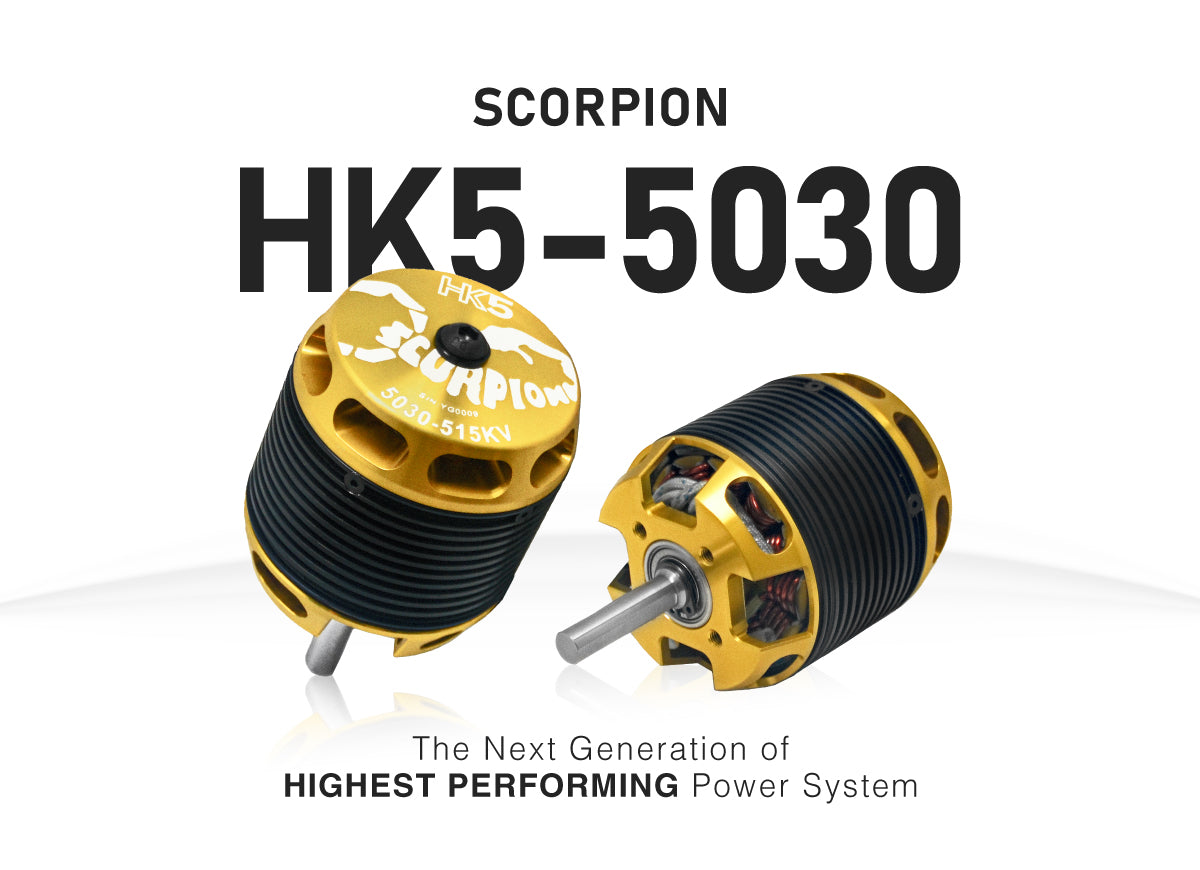

SCORPION HK5-5030-385/465/515KV MOTORS

Technical specifications:

  • Motor KV: 385/465/515KV RPM/Volt
  • Weight: 734.0g
  • Motor Body Dimensions: 62.8mm x 67.4mm
  • External Shaft Dimensions: 5.98 x 40mm, 7.98 x 34mm
  • Continuous Current: 120/135/145 Amps
  • Continuous Power: 7200 Watts
  • Peak Current: 216/260/280 Amps (2 seconds)
  • Peak Power: 13000 Watts (2 seconds)
  • Max Lipo Cell*: 12s-16s (515KV) / 12s-14s (465KV) / 12s-16s (385KV)
  • Stator Diameter: 50mm
  • Stator Thickness: 30mm
  • No. Stator Arms: 12
  • No. of Stator Poles: 10
  • Motor Wind: 5+5T YY (515KV) / 5T 2Y (465KV) / 6T (385KV)
  • Motor Wire: 1.68mm (515KV) / 1.6mm (465KV) / 1.56mm (385KV)
