Scorpion

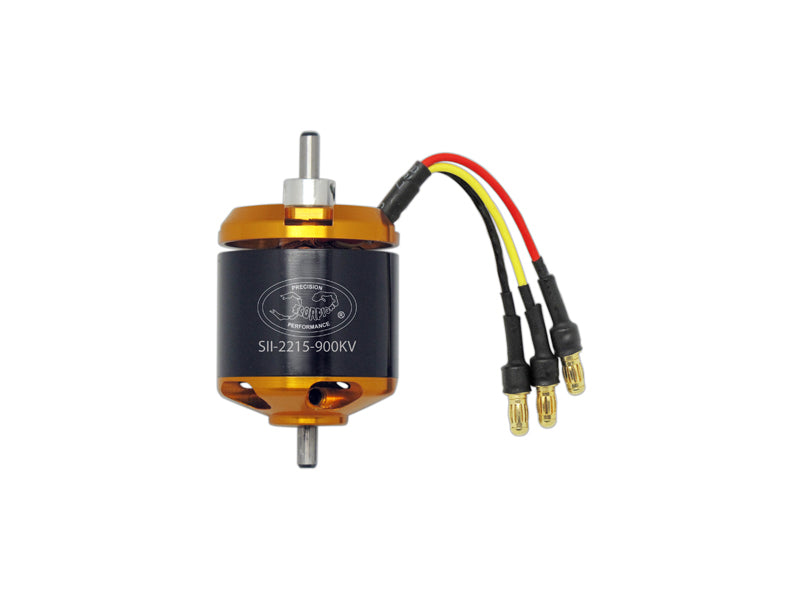

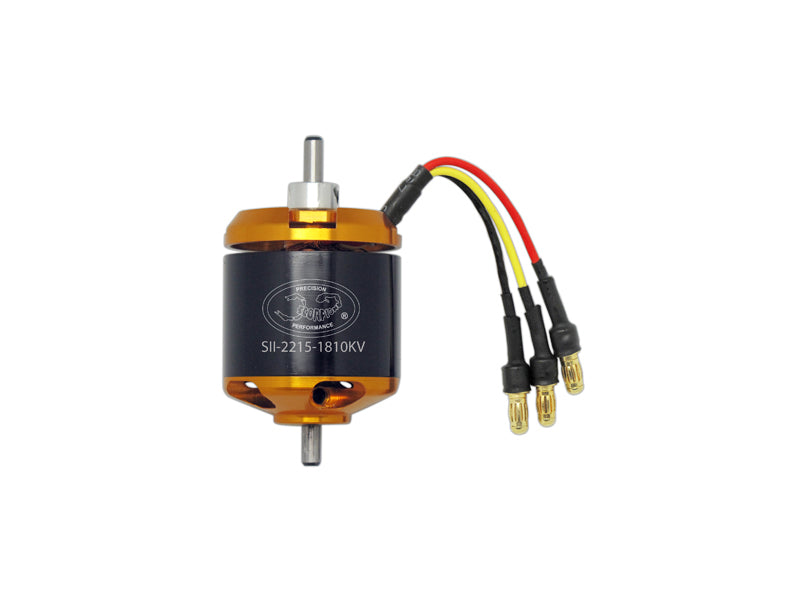

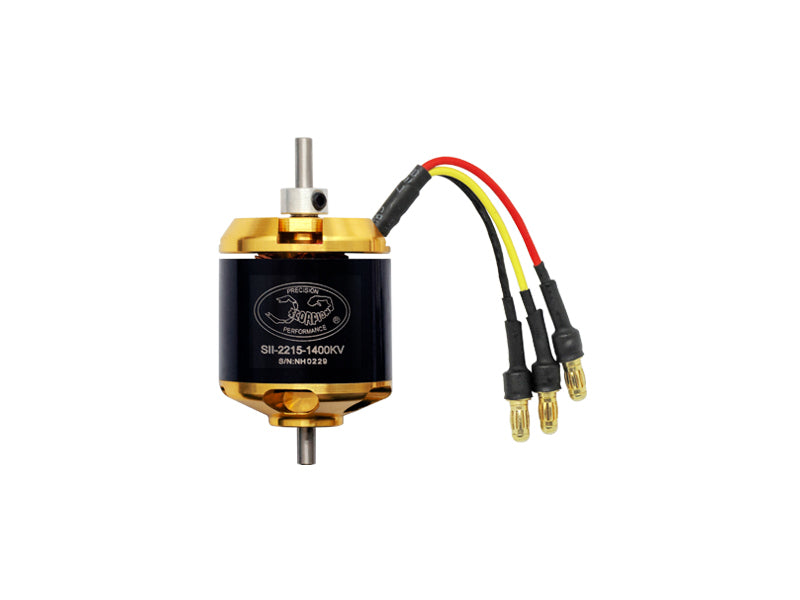

SCORPION SII-2215-900/1127/1400/1810KV (V2) MOTORS (SII-2215)

P/N: SII-2215

¥11,300 JPY
¥11,300 JPY ¥11,300 JPY
Sale Back order

KV

If you would like to purchase these motors, please contact us directly.

SCORPION SII-2215-900/1127/1400/1810KV (V2) MOTORS

Technical specifications:

Stator Diameter 22.0 mm (0.87 in)
Stator Thickness 15.0 mm (0.59 in)
No. of Stator Arms 12
Magnet Poles 14
Motor Wind 19/15/12/9 Turn Delta
Motor Wire 4-/6-/8-/10-Strand 0.21mm
Motor Kv 900/1127/1400/1810 RPM / Volt
No-Load Current (Io/10V) 0.52/0.78/0.95/1.35 Amps
Motor Resistance (Rm) 0.142/0.078/0.095/0.031 Ohms
Max Continuous Current 16/20/35/25 Amps
Max Continuous Power 237/296/518/370 Watts
Weight 68.6 Grams (2.42 oz)
Outside Diameter 27.9 mm (1.13 in)
Shaft Diameter 2.98 mm (0.12 in)
Adapter Thread size M5*0.8
Body Length 33.0 mm (1.3 in)
Overall Shaft Length 52.0 mm (2.04 in)
Max Lipo Cell 4s
Motor Timing 5deg
Drive Frequency 8kHz
