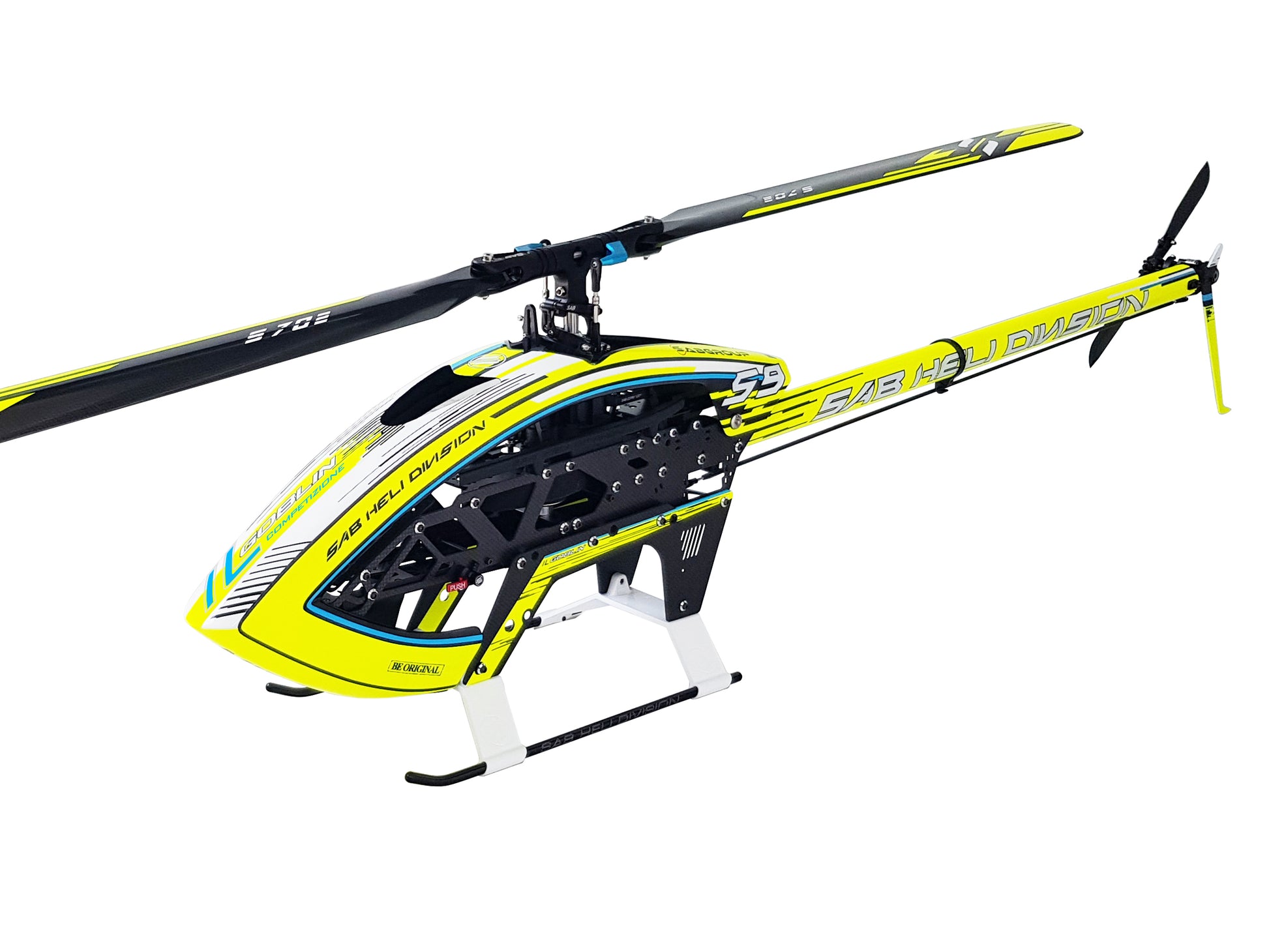

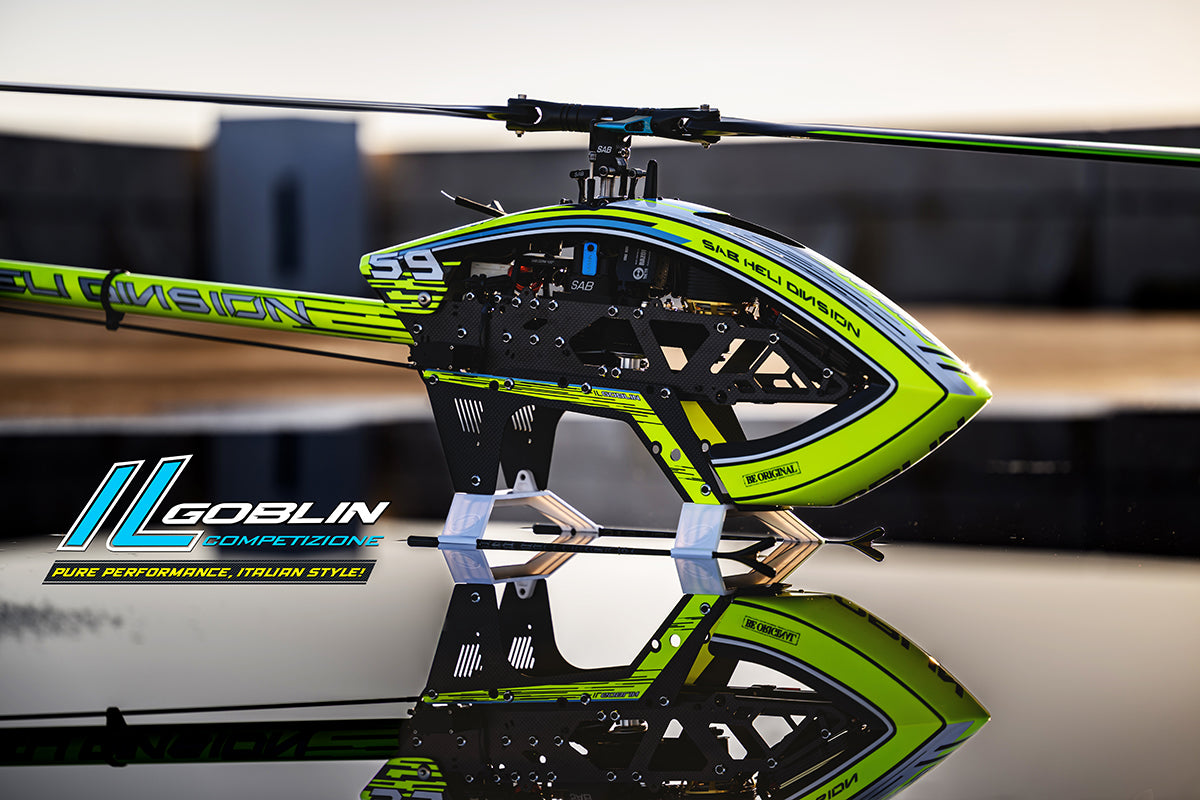

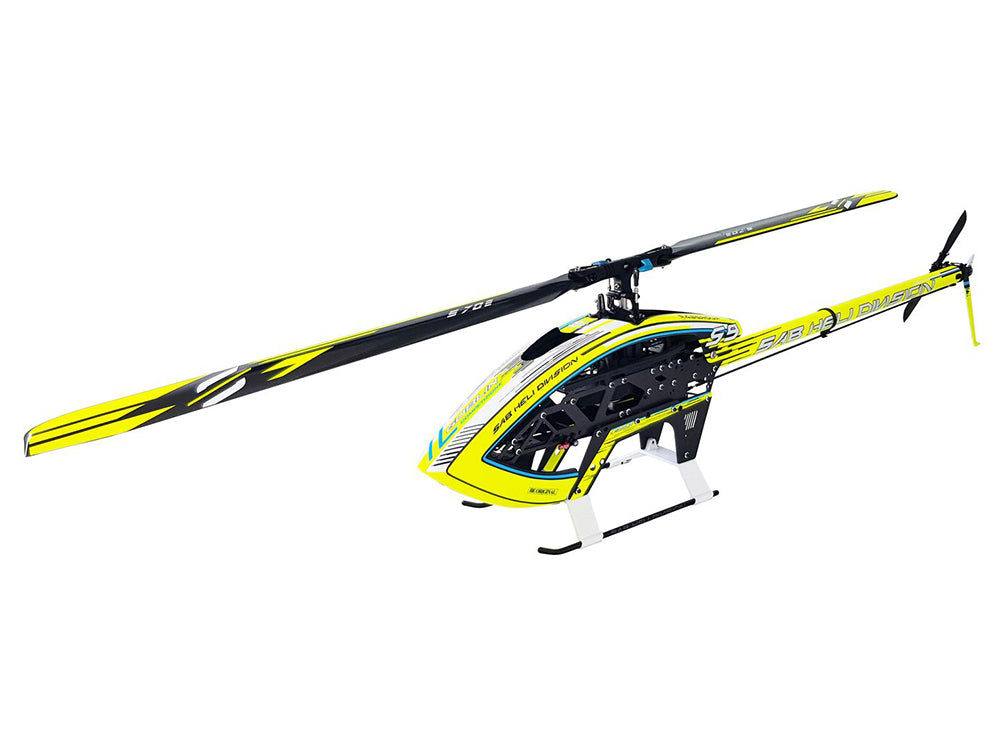

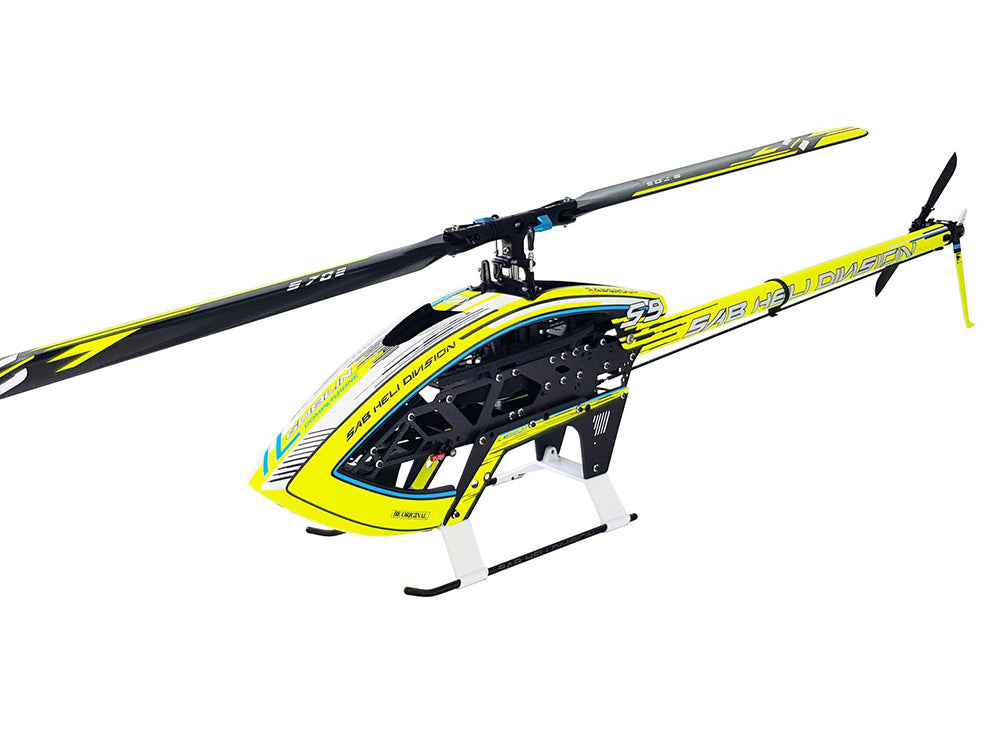

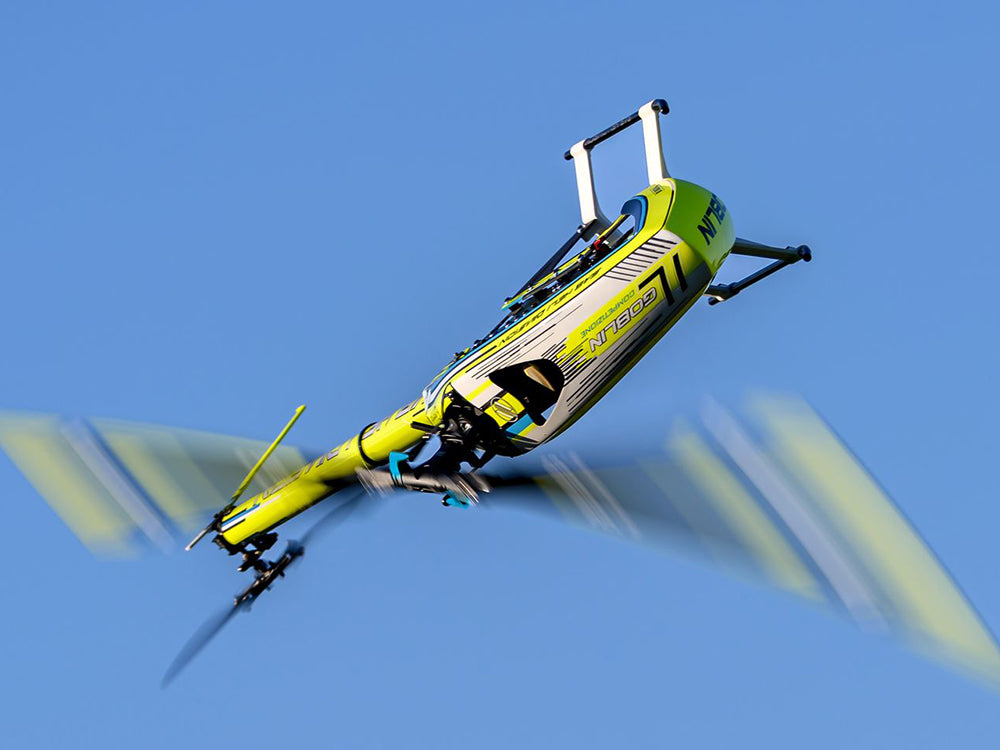

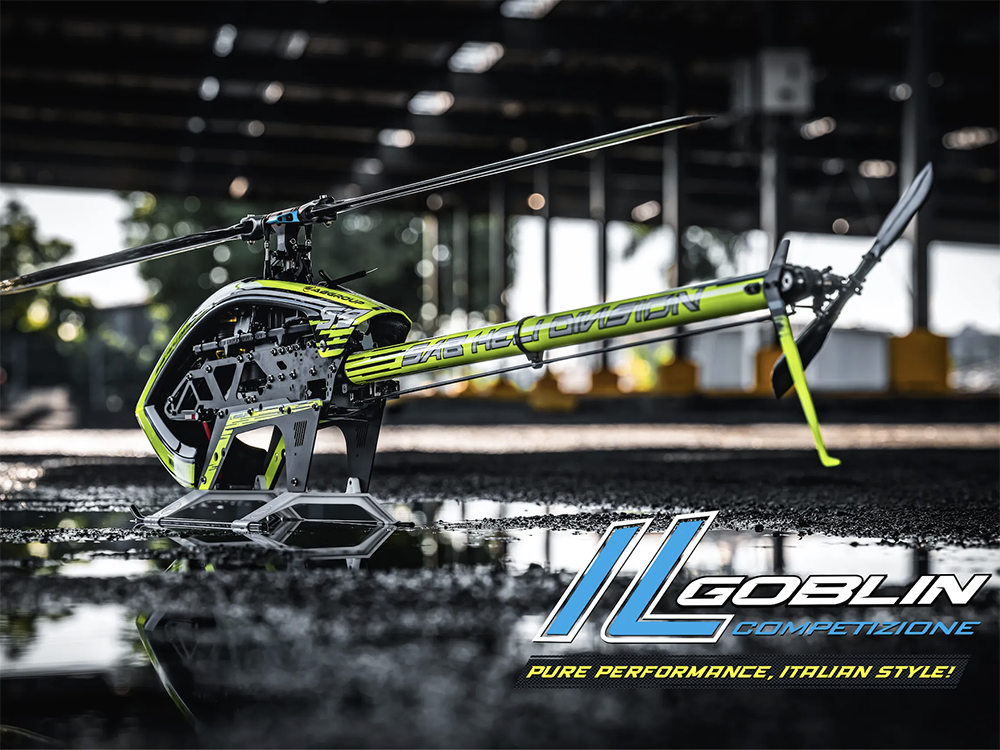

ILGOBLIN COMPETIZIONE (SG779)

BORN FROM YEARS OF COMPETITIVE EXPERIENCE AND RIGOROUS TESTING WITH THE WORLD’S ELITE GOBLIN PILOTS, THE ILGOBLIN COMPETIZIONE REPRESENTS THE ULTIMATE RACING MACHINE. ENGINEERED WITH A “ZERO-COMPROMISE” PHILOSOPHY, EVERY SINGLE SOLUTION IS FOCUSED ON ACHIEVING PEAK PERFORMANCE.
IN COMPETITION FLYING, LIGHTWEIGHT IS EVERYTHING. DESPITE ITS ABILITY TO HANDLE EXTREME POWER AND AGGRESSIVE MANEUVERS, THE ILGOBLIN COMPETIZIONE MAINTEINS A REMARKABLE AIRFRAME WEIGHT OF UNDER 2 KG.
EXPERIENCE A LEVEL OF ACROBATIC PRECISION AND FLIGHT FEEL NEVER ACHIEVED BEFORE.

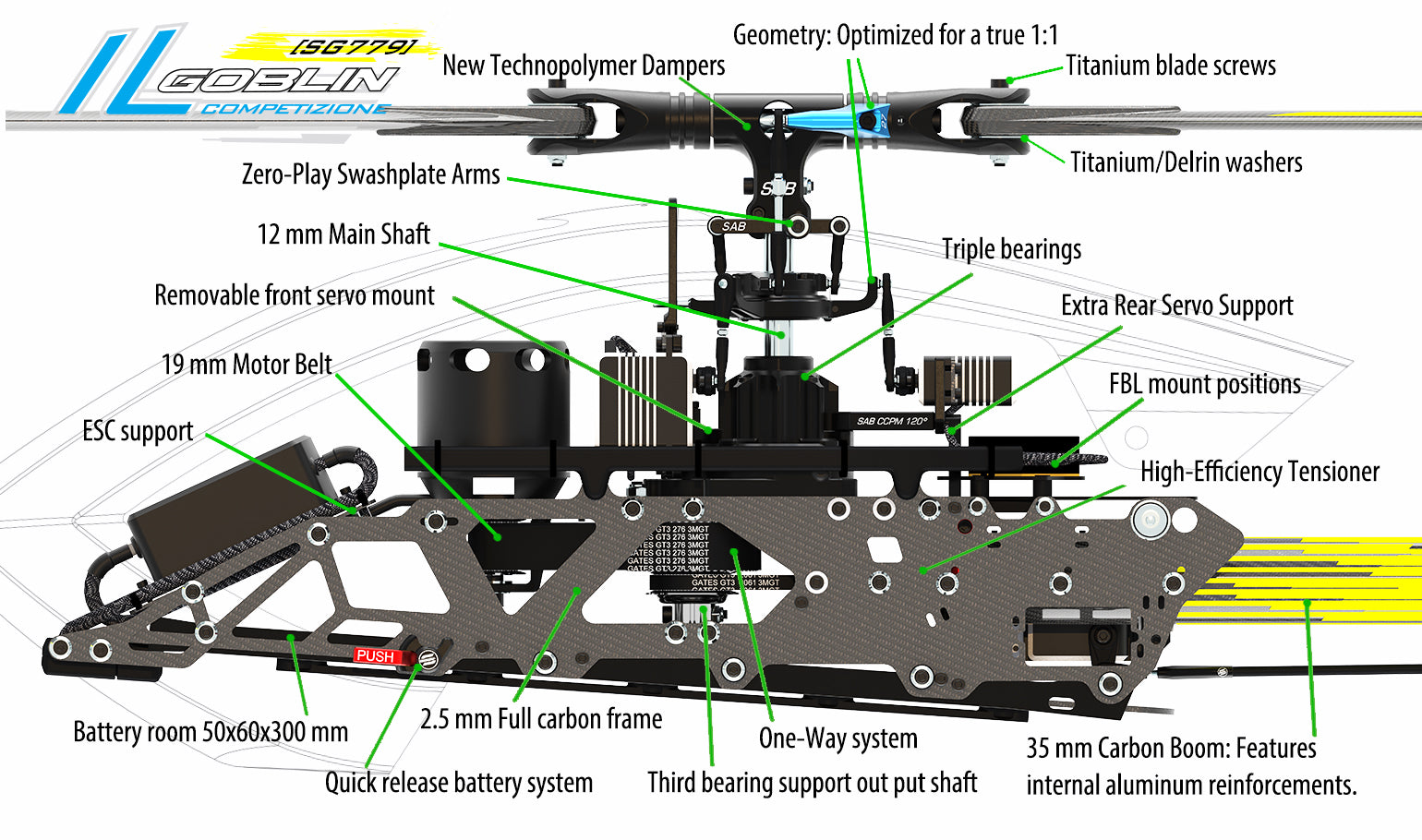

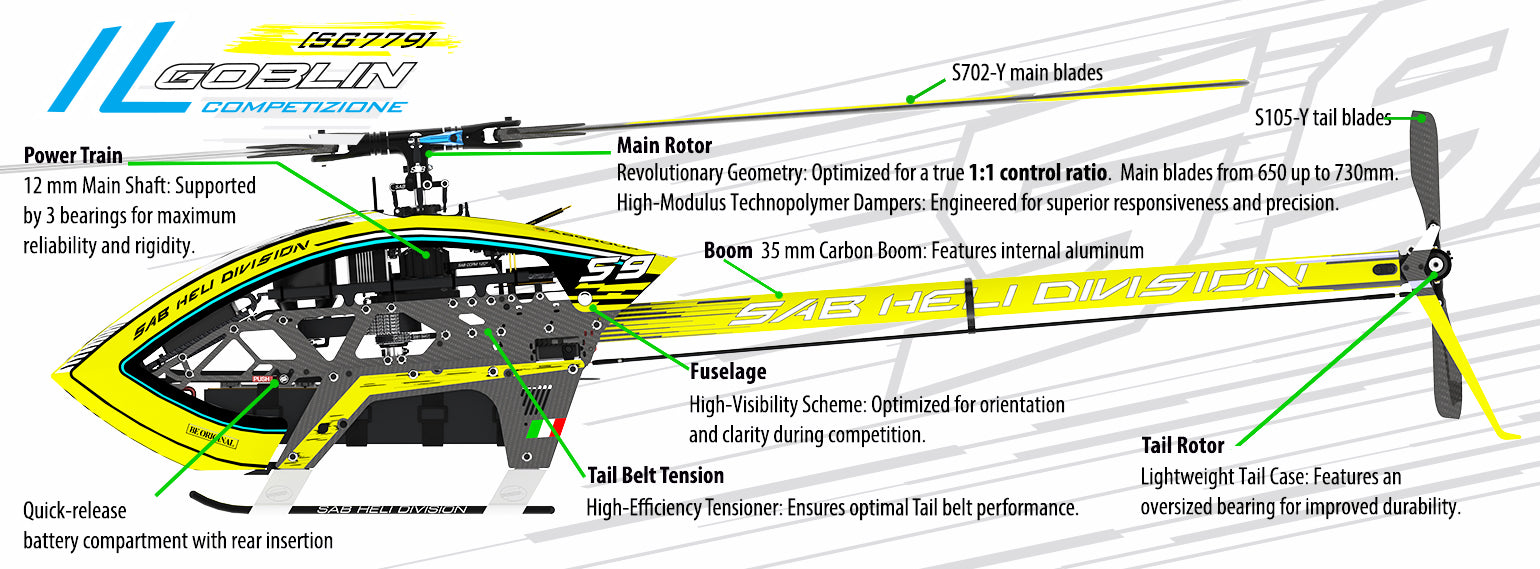

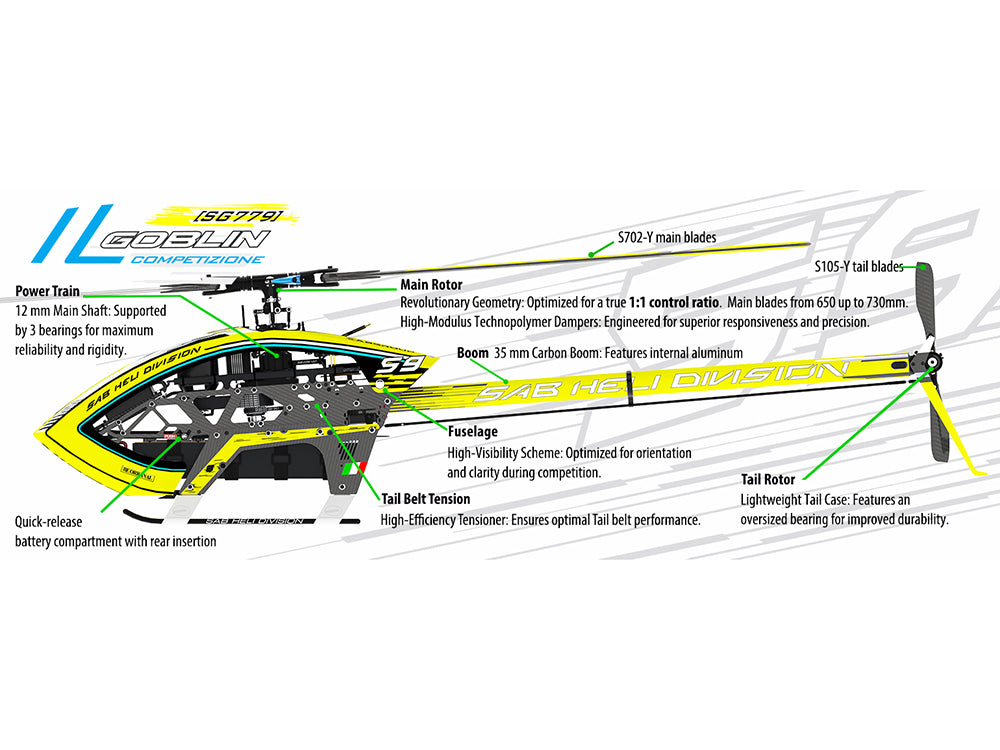

INNOVATIVE FEATURES

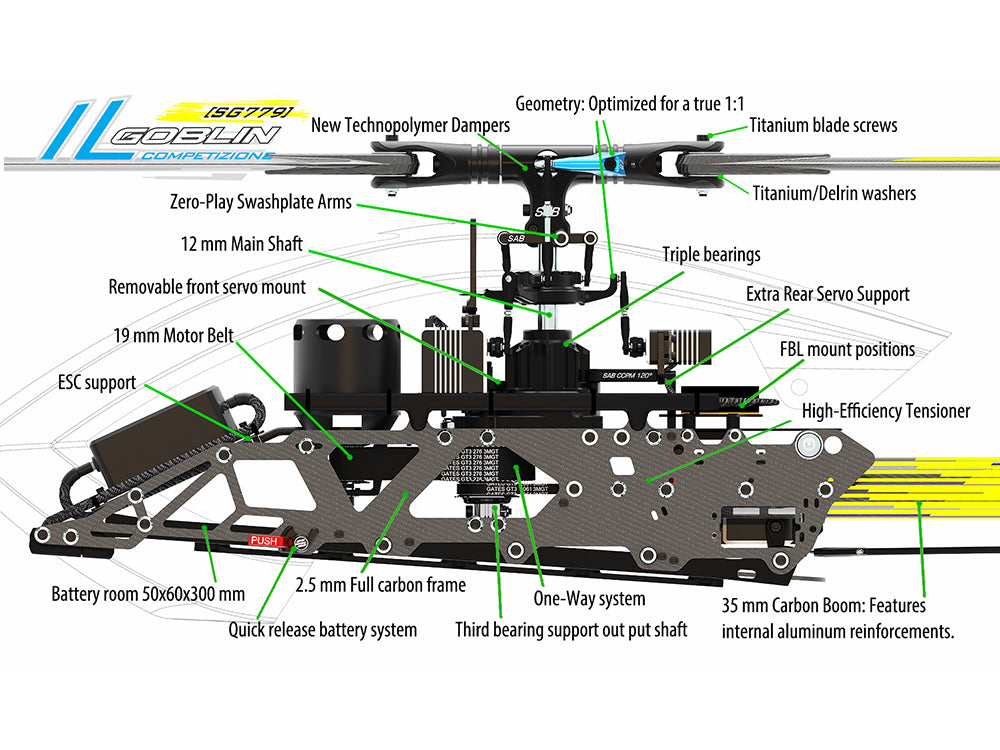

MAIN FRAME
• ENHANCED FRAME DESIGN: LIGHTENED AND REDESIGNED FOR MAXIMUM STRUCTURAL RIGIDITY.
• 19 MM MOTOR BELT: BUILT FOR HIGH TORQUE AND DURABILITY.
• HIGH-EFFICIENCY TENSIONER: ENSURES OPTIMAL TAIL BELT PERFORMANCE.
• EXTRA REAR SERVO SUPPORT: ADDED STABILITY FOR THE MOST DEMANDING MANEUVERS.
MAIN ROTOR
• REVOLUTIONARY GEOMETRY: OPTIMIZED FOR A TRUE 1:1 CONTROL RATIO.
• HIGH-MODULUS TECHNOPOLYMER DAMPERS: ENGINEERED FOR SUPERIOR RESPONSIVENESS AND PRECISION.
• 12 MM MAIN SHAFT: SUPPORTED BY TRIPLE BEARINGS FOR MAXIMUM RELIABILITY AND SMOOTHNESS.
• ZERO-PLAY SWASHPLATE ARMS: IMPROVED REFERENCE POINTS FOR PRECISE CYCLIC INPUT.
• TITANIUM BLADE SCREWS AND TITANIUM/DELRIN WASHERS FOR LIGHTWEIGHT STRENGTH.
TAIL ROTOR
• LIGHTWEIGHT TAIL CASE: FEATURES AN OVERSIZED BEARING FOR IMPROVED DURABILITY.
• ONE-PIECE SHAFT & HUB: MACHINED FROM A SINGLE PIECE FOR MAXIMUM PRECISION, INCLUDING AN INTEGRATED DAMPER FOR VIBRATION CONTROL.
• DOUBLE-PIN TAIL SLIDER: ELIMINATES SLOP FOR ROCK-SOLID TAIL AUTHORITY.
• CNC PLATE WASHERS: FOR A HIGH-END, DURABLE FINISH.
TAIL BOOM
• 35 MM CARBON BOOM: FEATURES INTERNAL ALUMINUM REINFORCEMENTS.
• ULTRALIGHT CONSTRUCTION: TOTAL WEIGHT OF ONLY 180 GRAMS.
CANOPY & BLADES
• FAST BATTERY ACCESS: UNIQUE CANOPY DESIGN ALLOWS BATTERY INSERTION FROM THE REAR—NO NEED TO REMOVE THE CANOPY.
• INTEGRATED CONNECTORS: MAKES BATTERY SWAPS LIGHTNING-FAST AND CONVENIENT.
• HIGH-VISIBILITY SCHEME: OPTIMIZED FOR ORIENTATION AND CLARITY DURING HIGH-SPEED COMPETITION.
FULLY COMPATIBLE WITH MOLDED BOOM AND PRO CANOPY FOR THE TOTAL UNIQUE GOBLIN DESIGN.
TECHNICAL SPECIFICATIONS
• AIRFRAME WEIGHT: 1990 G (NO BLADES, NO BATTERY, NO ELECTRONICS)
• MAIN ROTOR DIAMETER: 1576 MM (WITH 700 MM BLADES)
• MAIN BLADE LENGTH: 650–730 MM
• TAIL ROTOR DIAMETER: 292 MM (WITH 110 MM TAIL BLADES)
• TAIL BLADE LENGTH: 105–115 MM
• SERVOS: STANDARD SIZE (40 MM) FOR CYCLIC AND TAIL
• MAIN ROTOR RATIO: 11.8 TO 8.8 : 1 (21T PULLEY INCLUDED = 10.1 : 1)
• TAIL ROTOR RATIO: 5.1–4.9 : 1 (26T PULLEY INCLUDED = 4.9 : 1)
• POWER SYSTEM: 6S–12S SETUPS (MOTOR KV: 480–560 / 950–1100 KV)
• BATTERY COMPARTMENT: 50 X 60 X 300 MM
KIT INCLUDES: 22T MOTOR PULLEY, 26T TAIL PULLEY, 2 BATTERY TRAYS, S702 YELLOW MAIN BLADES (700 MM), S110 YELLOW TAIL BLADES (110 MM).
