SCORPION TRIBUNUS III 06-110A ESC SBEC (TRI-3-06-110)
Regular price
$264.00 SGD
Regular price
$264.00 SGD
Sale price
$264.00 SGD
Unit price
per

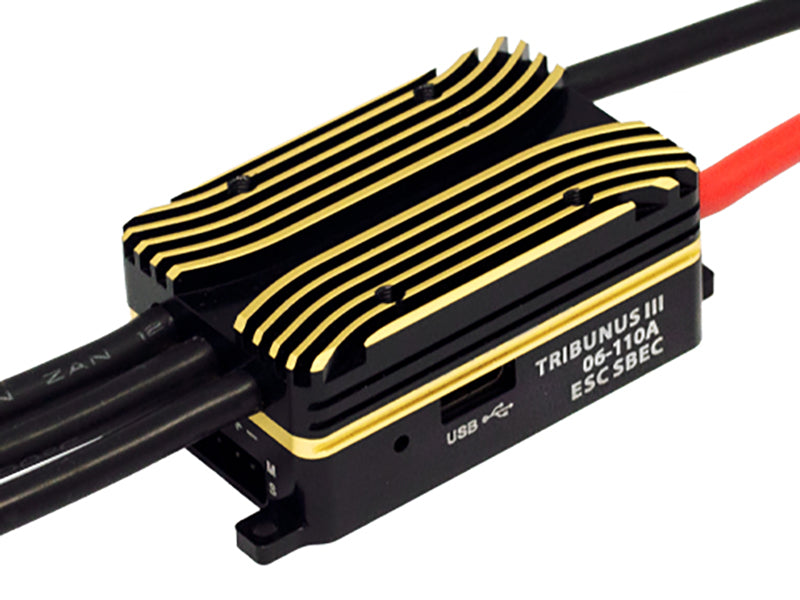

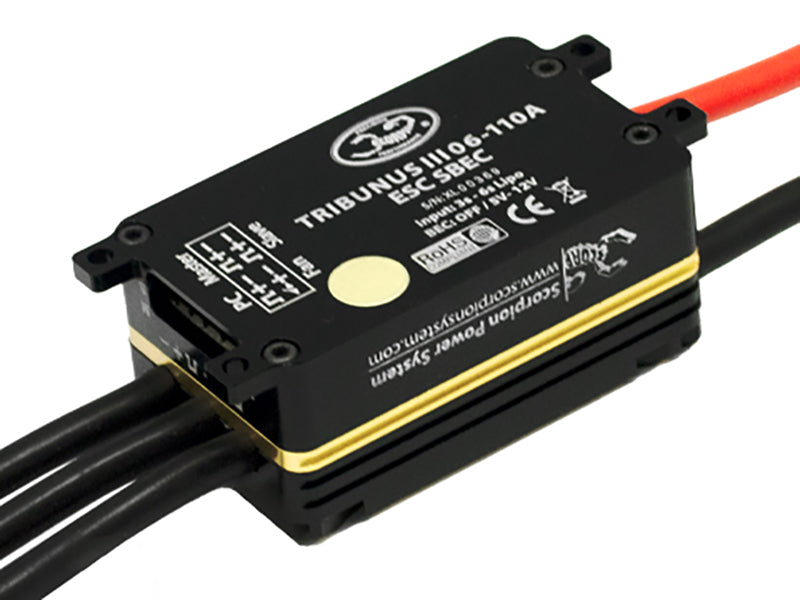

SCORPION TRIBUNUS III 06-110A ESC SBEC
Product Overview:
- 2-Tone Anodizing in gold and black
- Improved heat dissipation
- Enclosed capacitor added durability
- Integrated mounting tabs
- Max Continuous at 110A and Peak at 150A
- High power BEC 10A Continuous ad 20A Peak, 5V-12V

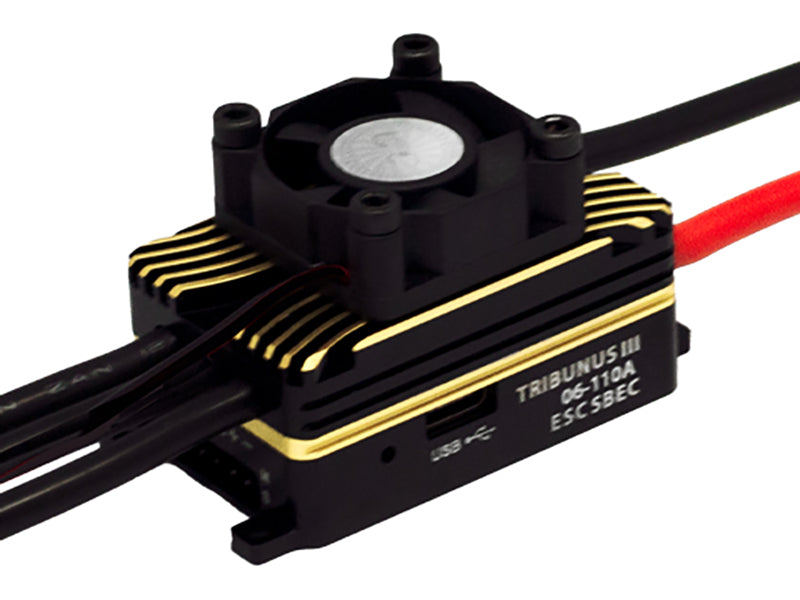

- Temperatures controlled fan port control fan operation
- Real-time telemetry and full data logging for multiple protocols - Mikado VBAR, Futaba SBUS, JETI EXBUS and others (with unsolicited protocol)
- Real-time telemetry - current, voltage, temperature, consumption,output power, BEC V, RPM, error codes, time stamp
- Highly programmable, easy to connect with USB Type C programming port for PC and Android
- Multiple program modes for any applications - Heli Mode, Airplane Mode
- Heli Mode provides Internal Governor (store and unstored mode) and External Governor (VBAT, Futaba and others)
- Airplane Mode provides Scorpion proprietary motor control algorithm, adjustable acceleration, break setting, reverse speed capability
- Designed and developed by Scorpion own engineers from PCB, mechanical design, proprietary motor control algorithm
- Unlock full potential of brushless motor power, efficiency and reliability
- Max Continuous Current: 110 Amps
- Peak Current: 150 Amps
- Operating Voltage Range: 11-26.1 Volts
- BEC Output Voltage: 5.1V to 12.1V adjustable
- Max Continuous BEC Output: 10 Amps @ 8.1 V
- Peak BEC Output: 20 Amps/1s @ 8.1 V
- On Resistance: 0.45 mOhms *2

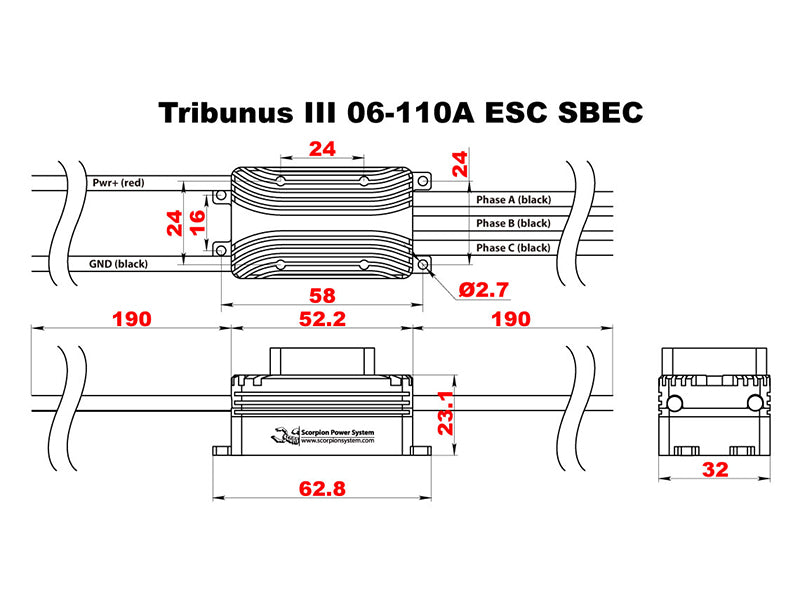

- Size: 32.0 x 52.5 x 23.1 mm (1.26 x 2.07 x 0.91 in)
- Weight (Without Connectors): 105g (3.7 oz)
- Drive Frequency: 8kHz - 32kHz

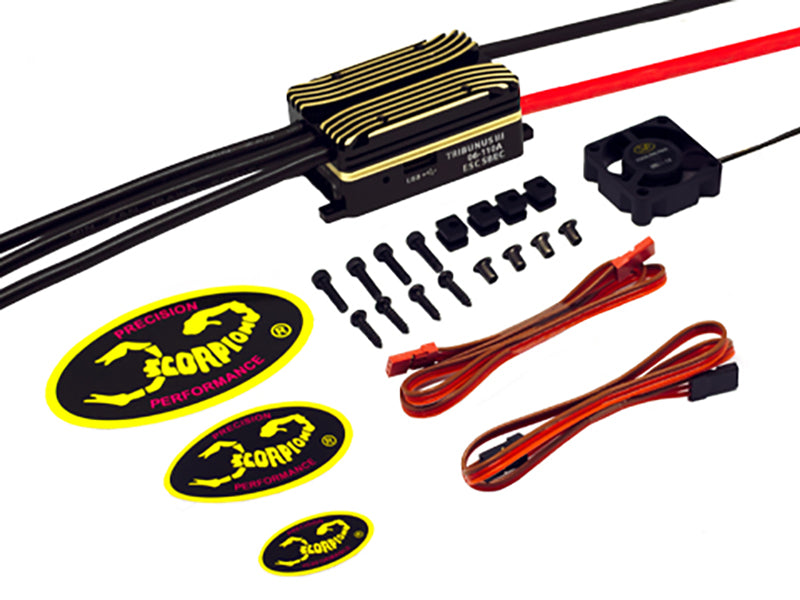

Included in the box:
- Tribunus III ESC: 1
- 30mm cooling fan: 1
- BEC cables: 2
