SCORPION TRIBUNUS III 14-220A ESC SBEC (TRI-3-14-220)

SCORPION TRIBUNUS III 14-220A ESC SBEC

The Tribunus III 14-220A ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilizing all Western Components and manufactured in Taiwan, this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESC's on the market for your hobby aircraft or industrial UAV.

Product Description:

• All new design, next level performance - All New PCB and case design

• Improved heat dissipation, cooler operating temperature

• Integrated mounting tabs
• Enclosed capacitors
• Two-tone black & gold anodized
• High power BEC programmable 15A / 30A with multiple levels 5V-12V
• Temperature controlled fan port with optional dual 30mm cooling fans

• Real time telemetry and data logging for current, voltage, temperature, consumption, output power, BEC V, RPM, error codes, time stamp
• Support telemetry for multiple protocols such as Futaba SBUS, Mikado VBAR, Jeti EXBUS and other systems (with unsolicited protocols)

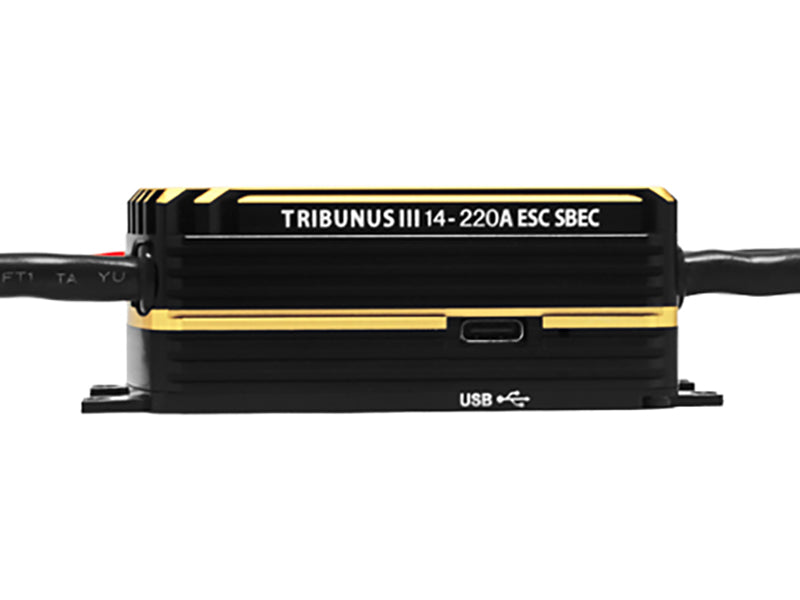

• Highly programmable and easy to connect with built-in USB Type C programming port, for PC and Android device
• Multiple program modes & features -
  • Airplane Mode - internal governor, external governor
  • Helicopter Mode - proprietary motor control algorithm, adjustable acceleration and break settings, airplane with reverse speed capability
• Designed by Scorpion and designed to be the best


Technical Specifications:

• Max Continuous Current: 220 Amps*
• Peak Current: 300 Amps
• Operating Voltage Range: 13-61 Volts
• BEC Output Voltage: Off / 5.1V to 12.1V adjustable

• Max Continuous BEC Output: 15 Amps @ 8.1 V

• Peak BEC Output: 30 Amps/1s @ 8.1 V

• On Resistance: 0.55 mOhms *2

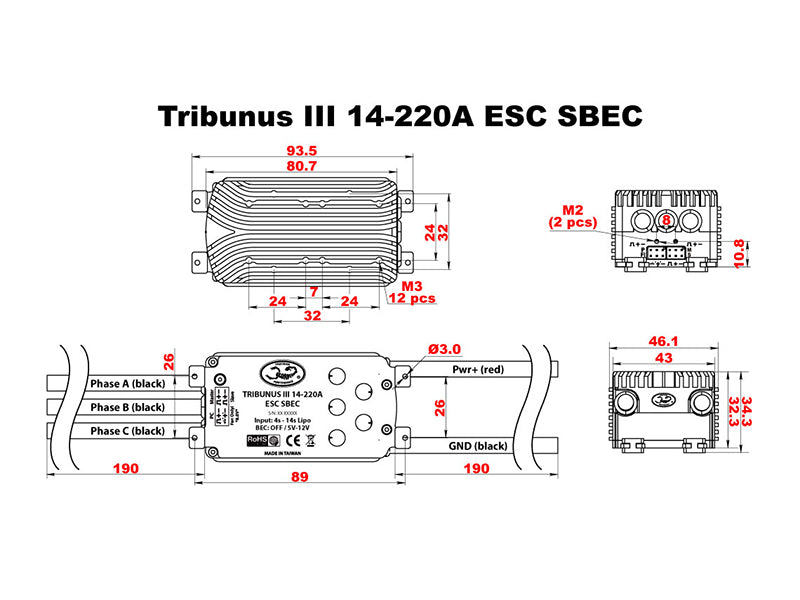

• Size: 80.7 x 46 x 32.3 mm (3.17 x 1.81 x 1.27 in)

• Mounting Tab: 26.0 x 89.0mm (1.02 x 3.50 in) / M3 bolt
• Weight (Without Wires): 194g (6.84 oz)

• Weight (With Wires): 294g (10.37 oz)
• Drive Frequency: 8kHz - 32kHz Dynamic Frequency

• Cable Gauge: 8 AWG x 200mm

• Max Electrical RPM: 240,000 RPM

* Max Continuous Current is the rating at 100% throttle for 60 secs with 35m/s of airflow.
