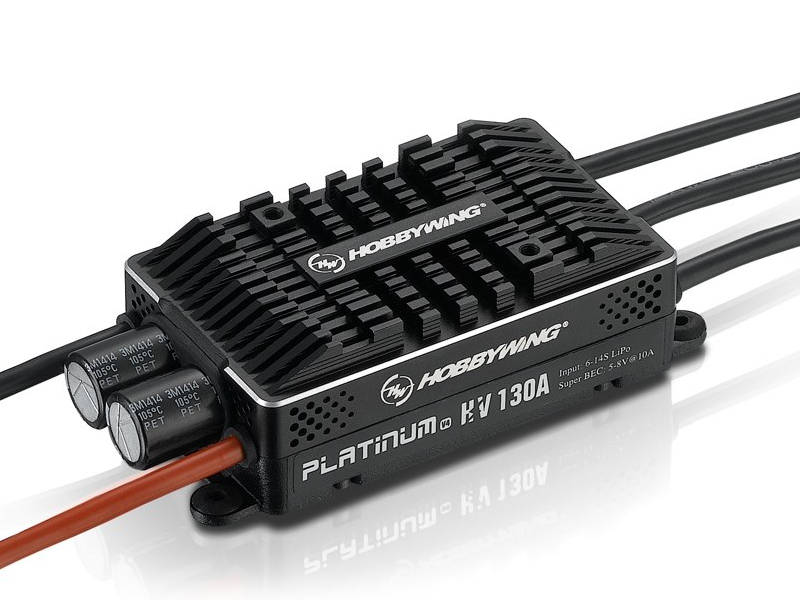

HOBBYWING PLATINUM 130A V4 (HW-P130AV4)

HOBBYWING PLATINUM 130A V4

Technical specifications:

• Type
• Brushed/Brushless: BL
• High Volt./Regular: High Voltage

• Specifications
• Cont./Peak Current: 130A/160A

• Input Voltage: 3-14S LiPo

• BEC Output: Switch Mode, 5-8V, 10A

• Wire & Connectors
• Input Wires: Red/Black 12AWG-150mm*1 each
• Output Wires: Black 12AWG-100mm*3
• Input Connectors: No
• Output Connectors: No
• ESC Programming via
• Transmitter: Not Supported
• LED Program Card: Not Supported
• LED Program Box: Not Supported
• LCD Program Box: Supported
• WiFi Module: Supported
• OTA Programmer: Supported
• Program Port: Separate Program Port
• Firmware
• Firmware Upgrade: Supported
• Size & Weight
• Size: 101.0x45.5x27.0mm

• Weight: 169g

• Applications
• 550-600 Class Heli (Main Blade: 550-690mm)
• .90-.140 Class Fixed-wing Airplane 3D
• 2m Lightweight FAI F3A & 3D
• EDF (dia. <= 105mm)

• ESC

• Accessories and hardware
