Scorpion

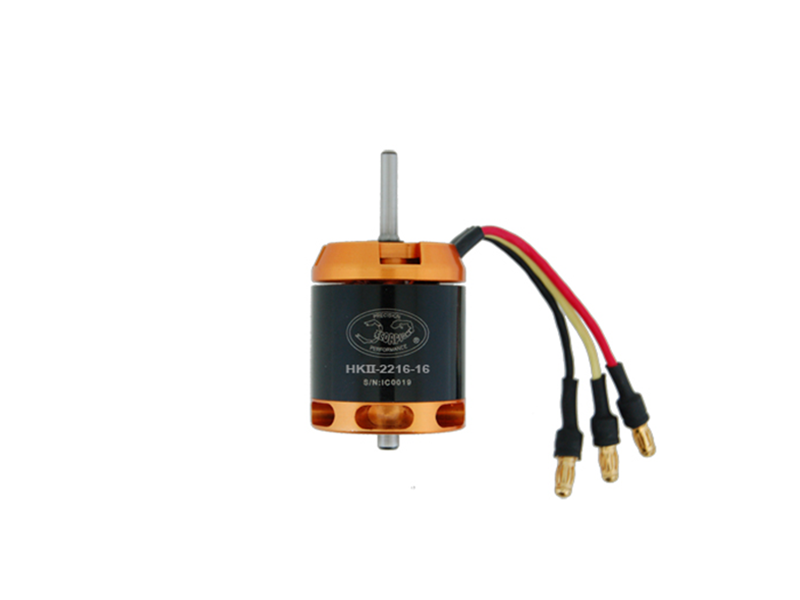

SCORPION HKII-2216-16 MOTOR (HKII-2216-16)

P/N: HKII-2216-16

Regular price $45.49 USD
Regular price $45.49 USD Sale price $45.49 USD
Sale Back order

SCORPION HKII-2216-16 MOTOR

Stator Diameter 22.0 mm (0.87 in)
Stator Thickness 16.0 mm (0.63 in)
No. of Stator Arms 9
Magnet Poles 6
Motor Wind 16 Turn Delta
Motor Wire 10-Strand 0.21mm
Motor Kv 2608 RPM / Volt
No-Load Current (Io) 1.19 Amps @ 10 volts
Motor Resistance (Rm) 0.048 Ohms
Max Continuous Current 30 Amps
Max Continuous Power 320 Watts
Weight 64 Grams (2.26oz)
Outside Diameter 27.9 mm (1.098 in)
Shaft Diameter 3.17 mm (0.125 in)
Body Length 33.3 mm (1.311 in)
Overall Shaft Length 53.7 mm (2.11 in)
Max Lipo Cell 3s
Motor Timing 5deg
Drive Frequency 8kHz
