Scorpion

SCORPION HKIV-4025-520KV MOTOR (HKIV-4025-520)

P/N: HKIV-4025-520

$259.99 USD
$259.99 USD $259.99 USD
Sale Sold out

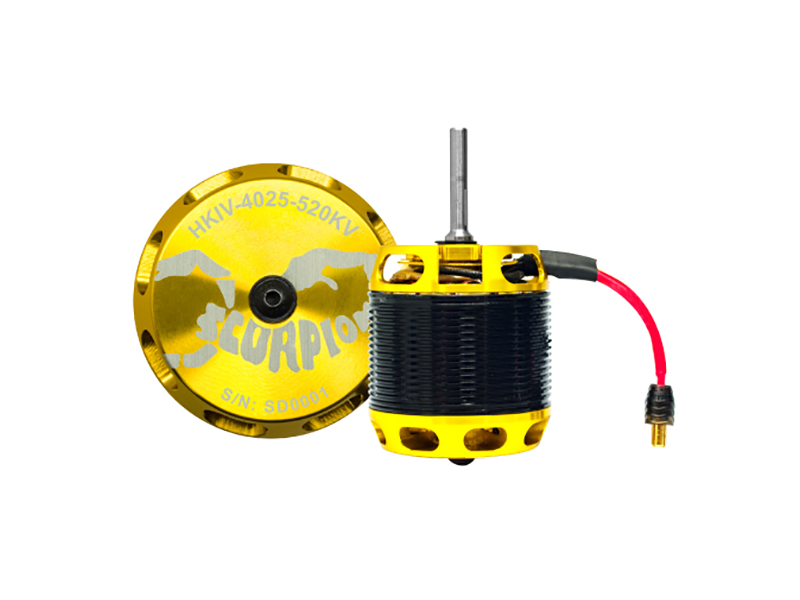

SCORPION HKIV-4025-520KV MOTOR

Technical specifications:

Stator Diameter 40 mm(1.57 in)
Stator Thickness 25 mm(0.98 in)
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 6+7 Turn Delta
Motor Wire 1-Strand 1.2 mm
Motor Kv 520KV RPM/Volt
No-Load Current (IO/10v) 1.81 Amps
Motor Resistance (RM) 0.022 Ohms
Max Continuous Current 65 Amp
Max Continuous Power 2886 Watt
Weight 347 Grams (10.58 oz)
Outside Diameter 49.50 mm (1.95 in)
Shaft Diameter 5.98 mm (0.24 in)
Body Length 54 mm (2.13 in)
Overall Shaft Length 84.6 mm (3.33 in)
Max Lipo Cell 12s
Peak Continuous Current 90 Amps (5 seconds)
Peak Continuous Power 3996 Watts (5 seconds)
Motor Timing 5deg
Drive Frequency 8kHz


Package includes:
  • Motor
  • Related hardware
