Scorpion

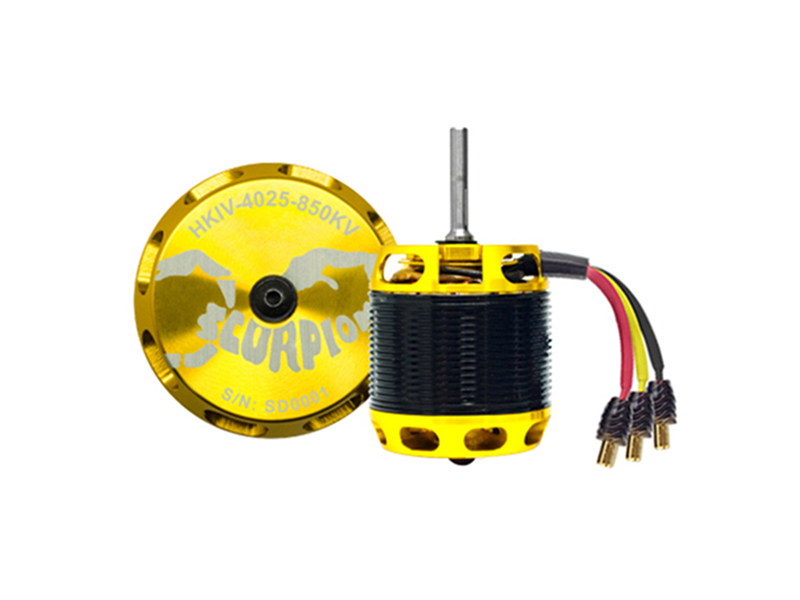

SCORPION HKIV-4025-850KV MOTOR (HKIV-4025-850)
P/N: HKIV-4025-850
Regular price
$259.99 USD
Regular price
$259.99 USD
Sale price
$259.99 USD
Unit price
per
Couldn't load pickup availability
SCORPION HKIV-4025-850KV MOTOR
Technical specifications:
| Stator Diameter | 40 mm(1.57 in) |
| Stator Thickness | 25 mm(0.98 in) |
| No. of Stator Arms | 12 |
| Magnet Poles | 10 |
| Motor Wind | 4+4 Turn Delta |
| Motor Wire | 1-Strand 1.6 mm |
| Motor Kv | 850KV RPM/Volt |
| No-Load Current (IO/10v) | 3.69 Amps |
| Motor Resistance (RM) | 0.009 Ohms |
| Max Continuous Current | 95 Amp |
| Max Continuous Power | 2812 Watt |
| Weight | 347 Grams (10.58 oz) |
| Outside Diameter | 49.50 mm (1.95 in) |
| Shaft Diameter | 5.98 mm (0.24 in) |
| Body Length | 54 mm (2.13 in) |
| Overall Shaft Length | 84.6 mm (3.33 in) |
| Max Lipo Cell | 8s |
| Peak Continuous Current | 110 Amps (5 seconds) |
| Peak Continuous Power | 3256 Watts (5 seconds) |
| Motor Timing | 5deg |
| Drive Frequency | 8kHz |
