Scorpion

SCORPION TRIBUNUS 06-80A ESC SBEC (TRI-06-80)

P/N: TRI-06-80

Regular price $118.99 USD
Regular price $139.99 USD Sale price $118.99 USD
Sale Sold out

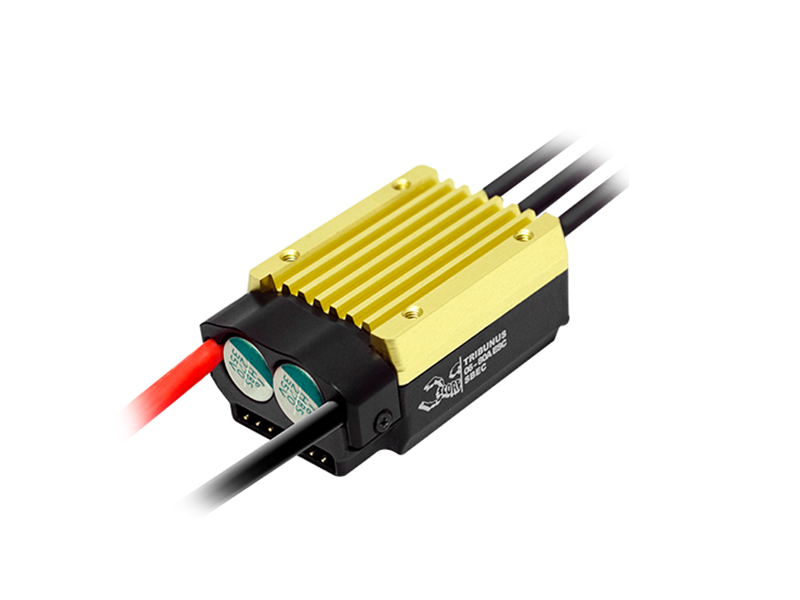

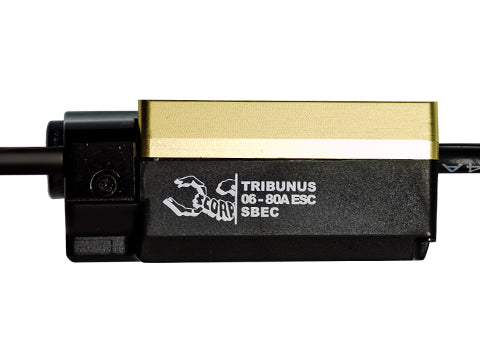

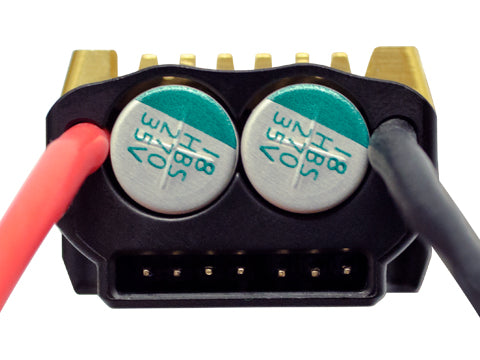

SCORPION TRIBUNUS 06-80A ESC SBEC

This ESC is now on the market again, only now Scorpion has super charged the BEC!  The ESC has the same small and compact footprint, and power capabilities.  The only difference now is that Scorpion has changed the BEC to one which can work better with the current servos on the market even ones with very high amp peaks, or back voltage.  This change unlocks many more applications for this ESC as it can handle a much wider spectrum of servos now.

Product Description:

  • Airplane and Heli mode
  • Stored and unstored Governor, external governor
  • Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3
  • ESC setup can be set by Mikado V control Radio
  • PC connectivity, Android connectivity (OTG cable needed) , V link II Cable (sold separately) plus Diode adapter (included) cable needed
  • Supported HvLi battery 6S total 26.1V
  • Size: 47.1 x 31 x 20 mm
  • Weight: 60g

Technical Specifications:

Max Continuous Current 80 Amps
Peak Current 120Amps
Operating Voltage Range 11-26.1 Volts
BEC Output voltage: 5.1V to 7.1V adjustable.
Max Continuous BEC Output 8 Amps @ 7.1 V
Max BEC Output 12A pules
On Resistance 0.6 mOhm *2
Size 47.1 x 31 x 20 mm (1.85 x 1.22 x 0.79 in)
Weight (Without Connectors) 56g (1.98 oz)
Drive frequency 8kHz - 32kHz


Package includes:
  • ESC
  • Diode cable
  • Connection cable
