Scorpion

SCORPION TRIBUNUS II 06-120A ESC SBEC (TRI-2-06-120)

P/N: TRI-2-06-120

Regular price $249.99 USD
Regular price $249.99 USD Sale price $249.99 USD
Sale Sold out

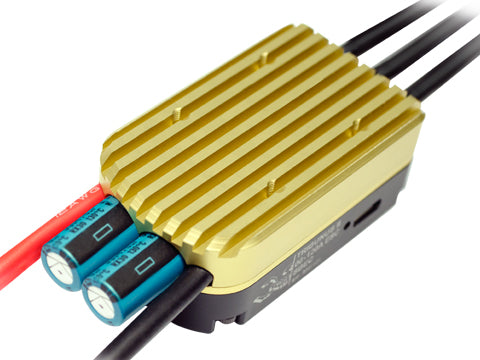

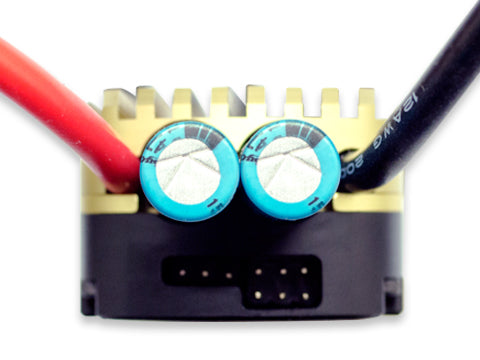

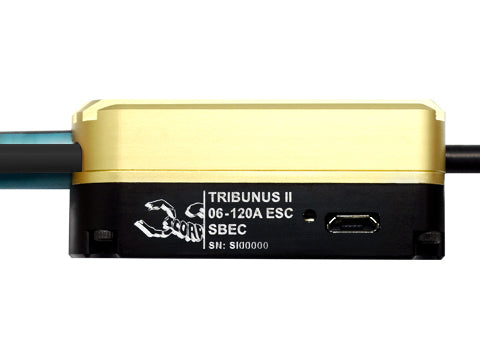

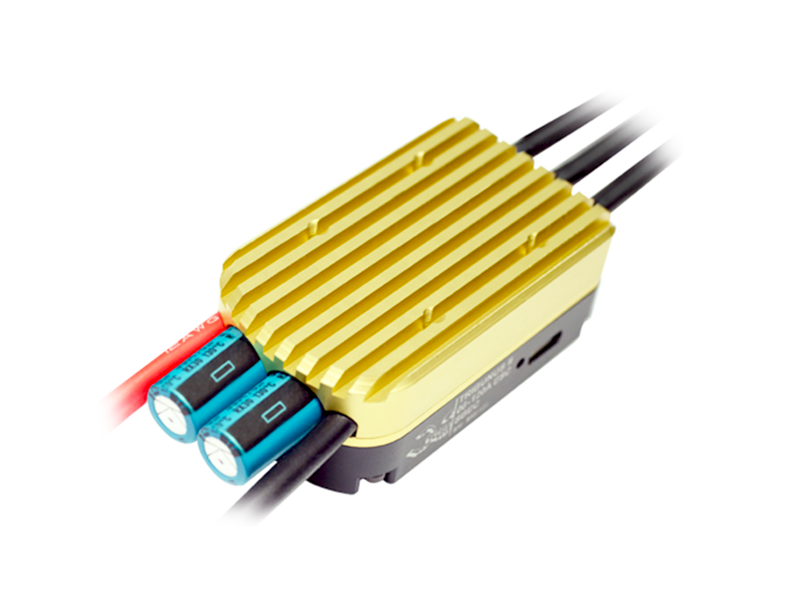

SCORPION TRIBUNUS II 06-120A ESC SBEC

Tribunus II 06-120A while small and light, can deliver enormous amounts of power to your model!  With 120A continuous and 150A peak capability at 6s, along with a 10A / 30A peak HV BEC, this ESC is sure to power your model with authority and reliability.  Combine that with the telemetry/ data logging functions of the Tribunus Line of ESC's and you have an ESC which provide you everything which you are looking for.  Need more power capability?  Check out the optional aluminum 30mm Hi-Speed Cooling Fan which bolts right to the top!

Product description:

  • Airplane and Heli mode
  • Stored and unstored Governor, external governor
  • Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3
  • ESC setup can be set by Mikado V control Radio
  • PC connectivity, Android connectivity (OTG cable needed) , V link II Cable (sold separately) plus Diode adapter (included) cable needed
  • Supported HvLi battery 6S total 26.1V
  • Size: 76.7 x 36.5 x 25.4 mm
  • Weight: 120g

Technical specifications:

Max Continuous Current 120 Amps
Peak Current 150Amps
Operating Voltage Range 11-26.1 Volts
BEC Output voltage: 5.1V to 8.1V adjustable.??
Max Continuous BEC Output 10 Amps @ 8.1 V
Peak BEC Output 30 Amps/1s @ 8.1 V
On Resistance 0.4 mOhms *2
Size 76.7 x 36.5 x 25.4 mm (3.02 x 1.44 x 1 in)
Weight (Without Connectors) 120g (4.23 oz)
Drive frequency 8kHz - 32kHz


Package includes:
  • ESC
  • Connection cable (2)
