Scorpion

SCORPION TRIBUNUS II 12-130A ESC SBEC (TRI-2-12-130)

P/N: TRI-2-12-130

Regular price $271.99 USD
Regular price $319.99 USD Sale price $271.99 USD
Sale Sold out

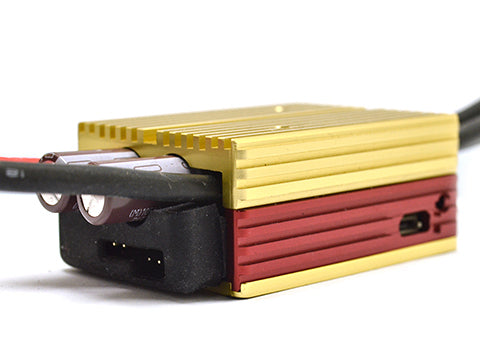

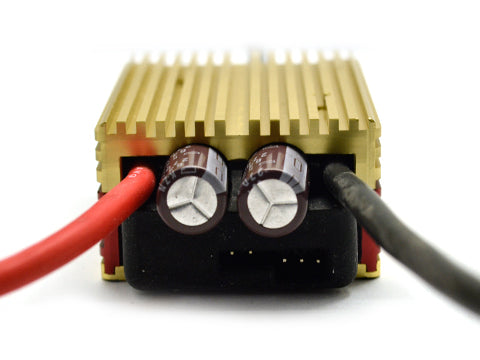

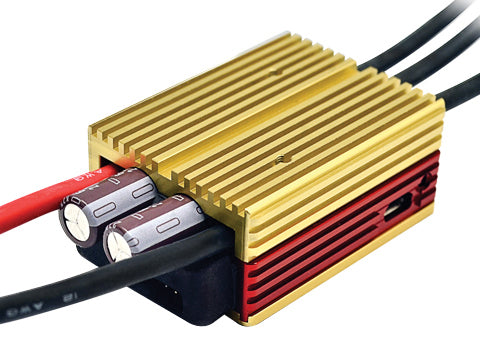

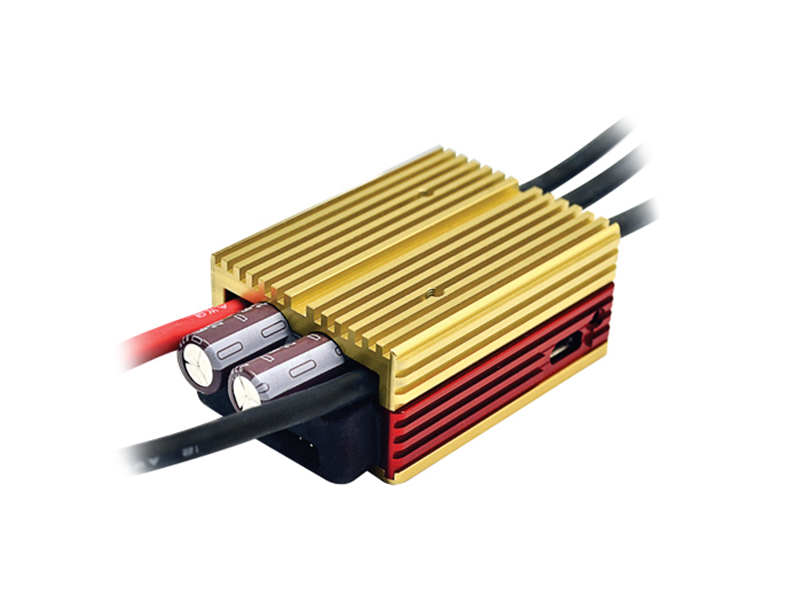

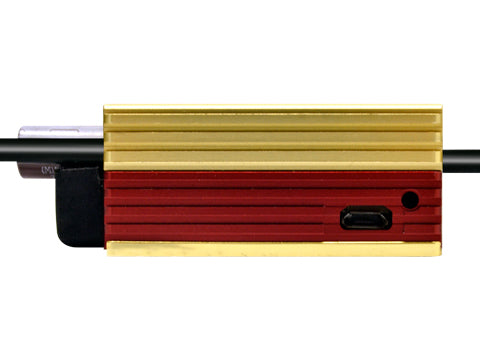

SCORPION TRIBUNUS II 12-130A ESC SBEC

Tribunus II 12-130A is a great ESC mid-size airplanes and 570-620 helicopters using 12S power.

Product description:

  • Airplane and Heli mode
  • Stored and unstored Governor, external governor
  • Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 and Futaba
  • ESC setup can be set by Mikado V control Radio
  • PC connectivity, Android connectivity (OTG cable needed) , V link II Cable (sold separately) plus Diode adapter (included) cable needed
  • Supported HvLi battery 12S total 52V
  • Size: 75.3 x 44.3 x 25.7 mm
  • Weight: 195g

Technical specifications:

Max Continuous Current 130 Amps
Peak Current 200 Amps
Operating Voltage Range 14-52 Volts
BEC Output voltage: 5.1V to 8.1V adjustable.
Max Continuous BEC Output 10 Amps @ 8.1 V
Peak BEC Output 30 Amps/1s @ 8.1 V
On Resistance 0.7 mOhms *2
Size 75.3 x 44.3 x 25.8 mm (2.96 x 1.74 x 1.01 in)
Weight (Without Connectors) 195 g (6.87 oz)
Drive frequency 8kHz - 32kHz


Package includes:
  • ESC
  • Connection cable (2)
