Scorpion

SCORPION TRIBUNUS II 12-80A ESC SBEC (TRI-2-12-80)

P/N: TRI-2-12-80

Regular price $289.99 USD
Regular price $289.99 USD Sale price $289.99 USD
Sale Sold out

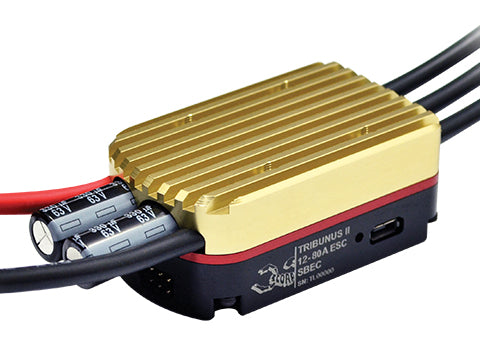

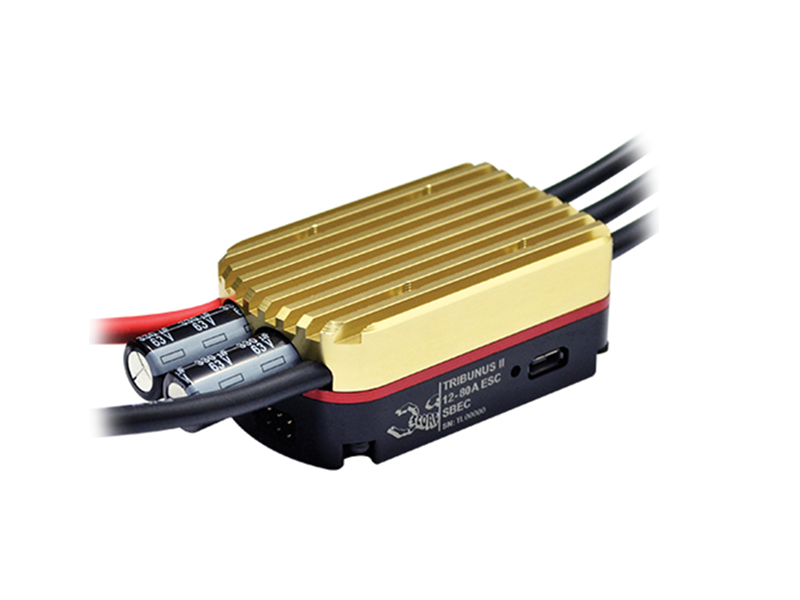

SCORPION TRIBUNUS II 12-80A ESC SBEC

Tribunus II 12-80A is an unique ESC designed for airplanes and 550-570 helicopters that is lightweight for up to 12S power.

Product description:

  • Airplane and Heli mode
  • Stored and unstored Governor, external governor
  • Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 and Futaba
  • ESC setup can be set by Mikado V control Radio
  • PC connectivity, Android connectivity (OTG cable needed) , V link II Cable (sold separately) plus Diode adapter (included) cable needed
  • Supported HvLi battery 12S total 52V
  • Size: 76.7 x 36.5 x 25.4 mm
  • Weight: 144g

Technical specifications:

Max Continuous Current 80 Amps
Peak Current 100 Amps
Operating Voltage Range 14-52 Volts
BEC Output voltage: 5.1V to 8.1V adjustable.??
Max Continuous BEC Output 10 Amps @ 8.1 V
Peak BEC Output 30 Amps/1s @ 8.1 V
On Resistance 0.4 mOhms *2
Size 76.7 x 36.5 x 25.4 mm (3.02 x 1.44 x 1 in)
Weight (Without Connectors) 144g (5.08 oz)
Drive frequency 8kHz - 32kHz


Package includes:
  • ESC
  • Connection cable (2)
