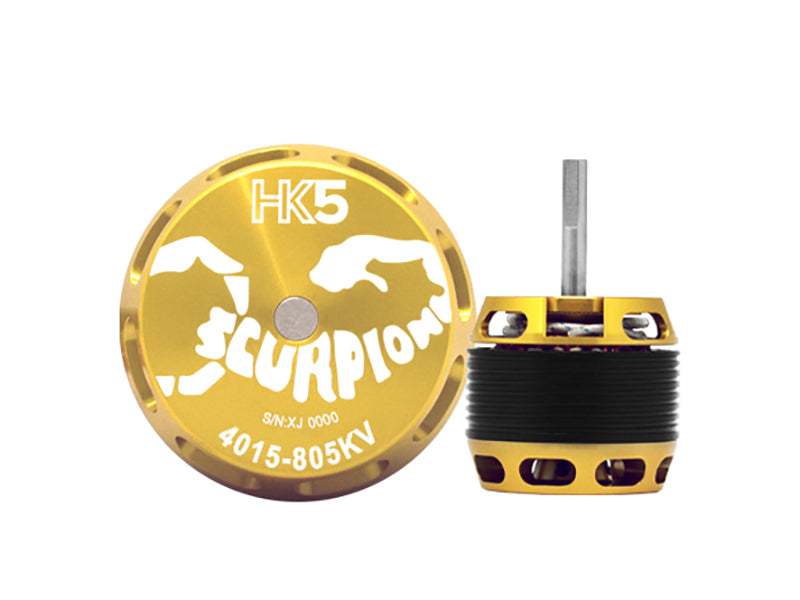

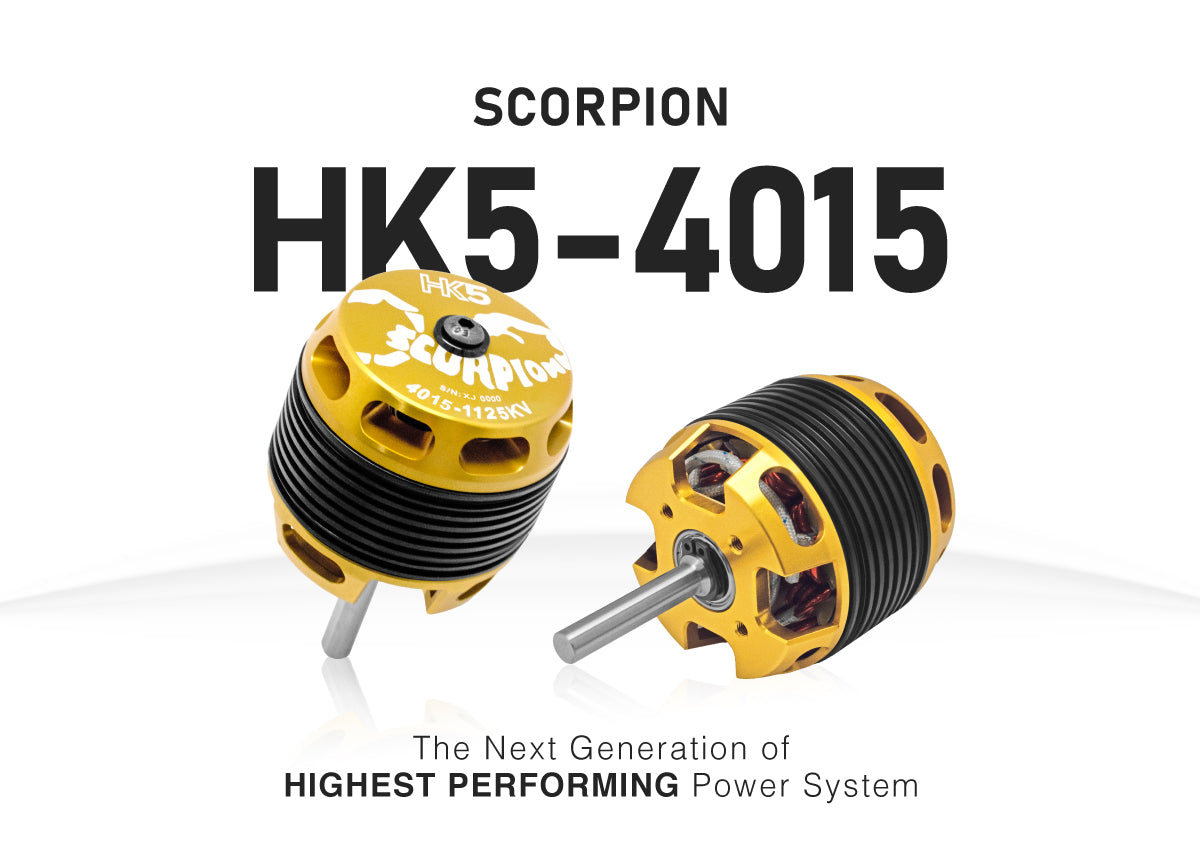

SCORPION HK5-4015-805/1125KV MOTORS (HK5-4015)

SCORPION HK5-4015-805/1125KV MOTORS

Technical specifications:

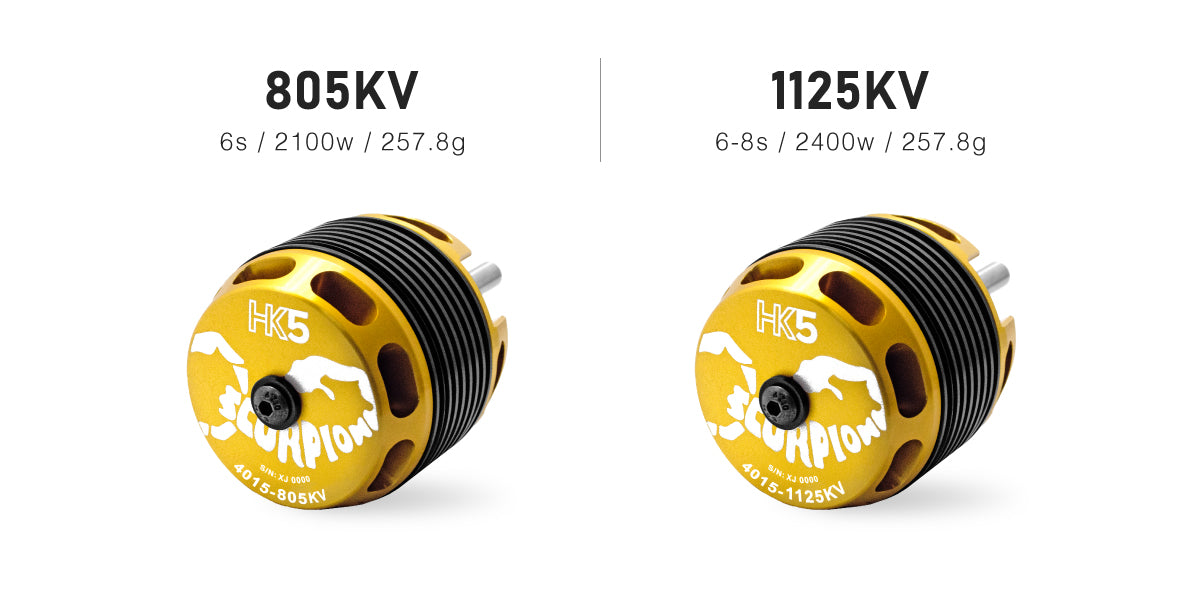

• Motor KV: 805/1125KV RPM/Volt
• Weight: 257.8g
• Motor Body Dimensions: 49.5mm x 45.5mm

• External Shaft Dimensions: 5.98mm x 32mm

• Continuous Current: 60/68 Amps
• Continuous Power: 1330/1500  Watts
• Peak Current: 95/100 Amps (2 seconds)
• Peak Power: 2100/2440 Watts (2 seconds)
• Max Lipo Cell*: 6s/6s-8s
• Stator Diameter: 40mm
• Stator Thickness: 15mm
• No. Stator Arms: 12
• No. of Stator Poles: 10
• Motor Wind: 7T Delta (805KV) / 5T Delta (1125KV)
• Motor Wire: 1.18 (805KV) / 1.4mm (1125KV)
