SCORPION S-5028-220KV MOTOR (S-5028)
产品编号: S-5028
常规价格
$349.99 USD
常规价格
$349.99 USD
促销价
$349.99 USD
单价
单价
无法加载取货服务可用情况
If you would like to purchase this motor, please contact us directly.

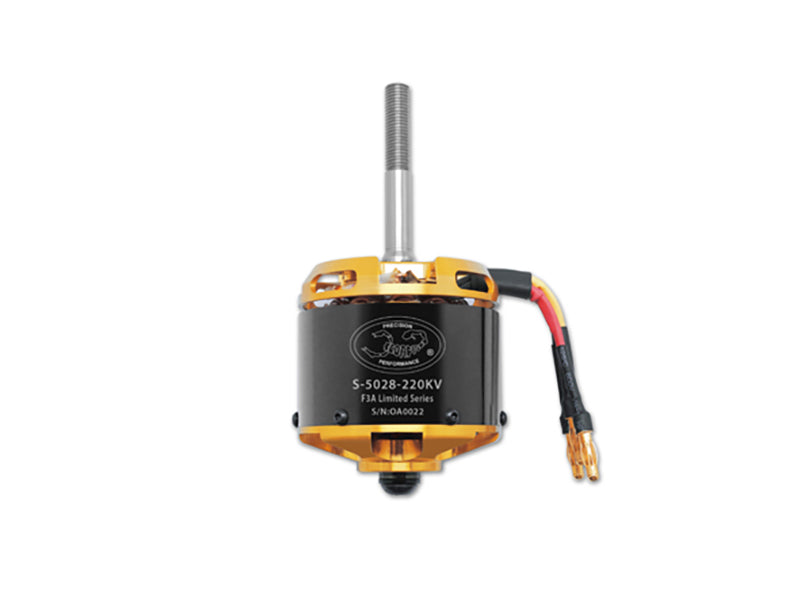

SCORPION S-5028-220KV MOTOR
Technical specifications:
| Stator Diameter | 50 mm (1.56 in) |
| Stator Thickness | 28 mm (1.10 in) |
| No. of Stator Arms | 12 |
| Magnet Poles | 14 |
| Motor Wind | 11 Turn YY |
| Motor Wire | 1-Strand 1.2 mm |
| Motor Kv | 220KV RPM / Volt |
| No-Load Current (Io/10V) | 0.98 Amps |
| Motor Resistance (Rm) | 0.032 Ohms |
| Max Continuous Current | 70 Amps |
| Max Continuous Power | 2590 Watts |
| Weight | 576 Grams (20.32 oz) |
| Outside Diameter | 59.8 mm (2.35 in) |
| Shaft Diameter | 7.98 mm (0.314 in) |
| Thread size | M8*1.0 |
| Body Length | 60 mm (2.36 in) |
| Overall Shaft Length | 113.6 mm (4.47 in) |
| Max Lipo Cell | 10s |
| Shaft Material | Titanium |
| Motor Timing | 5deg |
| Drive Frequency | 8kHz |
