MKS HV6150H SERVO (HV6150H)

Commercial order only.  If you would like to purchase this item, please contact us for availability and pricing information.

MKS HV6150H SERVO

Technical Specifications:

• Torque (kg-cm):

  • 6.3 (4.8V)
  • 8.2 (6V)
  • 9.8 (7.4V)
  • 10.9 (8.2V)
• Speed (sec):
  • 0.274 (4.8V)
  • 0.190 (6V)
  • 0.176 (7.4V)
  • 0.159 (8.2V)
• Stall Current (A):
  • 0.8 (4.8V)
  • 0.96 (6V)
  • 0.176 (7.4V)
  • 0.159 (8.2V)
• Weight: 17.2 grams

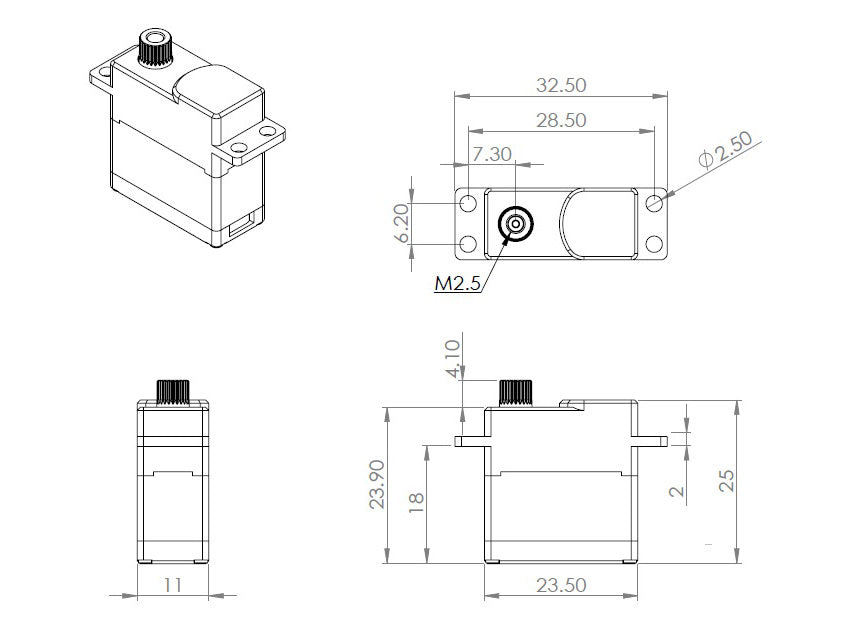

• Size: 23.5 X 11 X 25mm

• Working Voltage: 6.0V - 8.4V
• Working Frequency: 1520 s / 333Hz
• Dead Band: 0.002  ms (Default)
• Gear Type: Metal alloy
• Motor Type: Coreless
