Scorpion

SCORPION SII-2208-1100/1280KV (V2) MOTORS (SII-2208)

产品编号: SII-2208

¥438.00 CNY
¥438.00 CNY ¥438.00 CNY
优惠中 待补货

KV

If you would like to purchase these motors, please contact us directly.

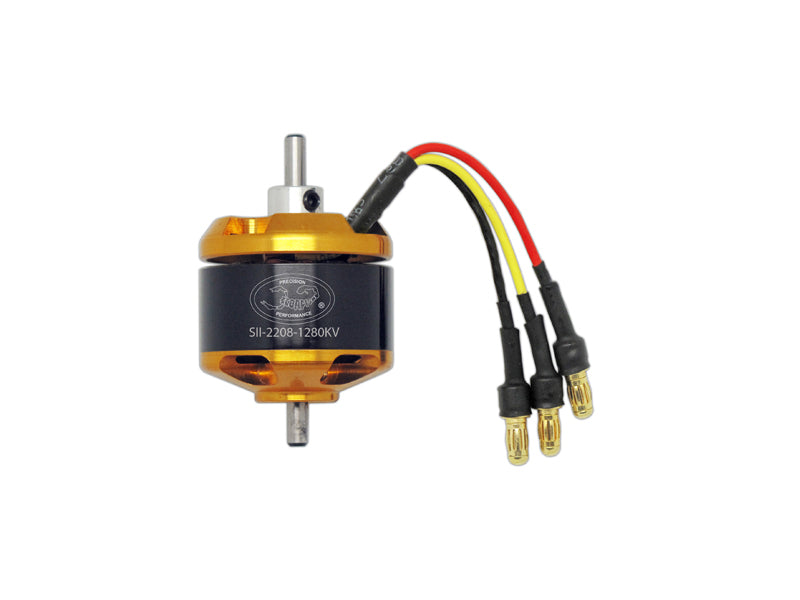

SCORPION SII-2208-1100/1280KV (V2) MOTORS

Technical specifications:

Stator Diameter 22.0 mm (0.87 in)
Stator Thickness 8.0 mm (0.32 in)
No. of Stator Arms 12
Magnet Poles 14
Motor Wind 28/26 Turn Delta
Motor Wire 3-/4-Strand 0.21mm
Motor Kv 1100/1280 RPM / Volt
No-Load Current (Io/10V) 0.41/0.47 Amps
Motor Resistance (Rm) 0.17/0.15 Ohms
Max Continuous Current 12/14 Amps
Max Continuous Power 133/155 Watts
Weight 45.0 Grams (1.59 oz)
Outside Diameter 27.9 mm (1.13 in)
Shaft Diameter 2.98 mm (0.12 in)
Adapter Thread size M5*0.8
Body Length 26.0 mm (1.02 in)
Overall Shaft Length 45.0 mm (1.77 in)
Max Lipo Cell 3s
Motor Timing 5deg
Drive Frequency 8kHz
