Scorpion

SCORPION SII-3026-710/890/1190KV (V2) MOTORS (SII-3026)

产品编号: SII-3026

¥986.00 CNY
¥986.00 CNY ¥986.00 CNY
优惠中 待补货

KV

If you would like to purchase these motors, please contact us directly.

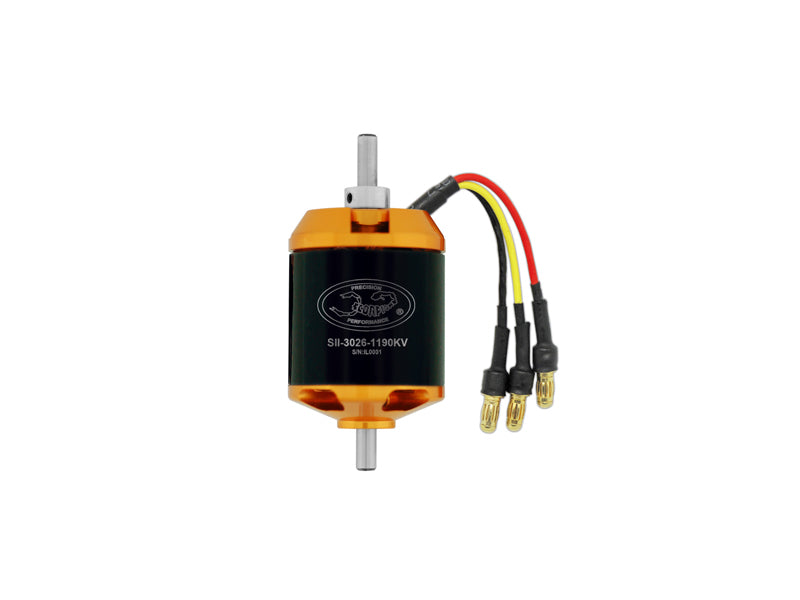

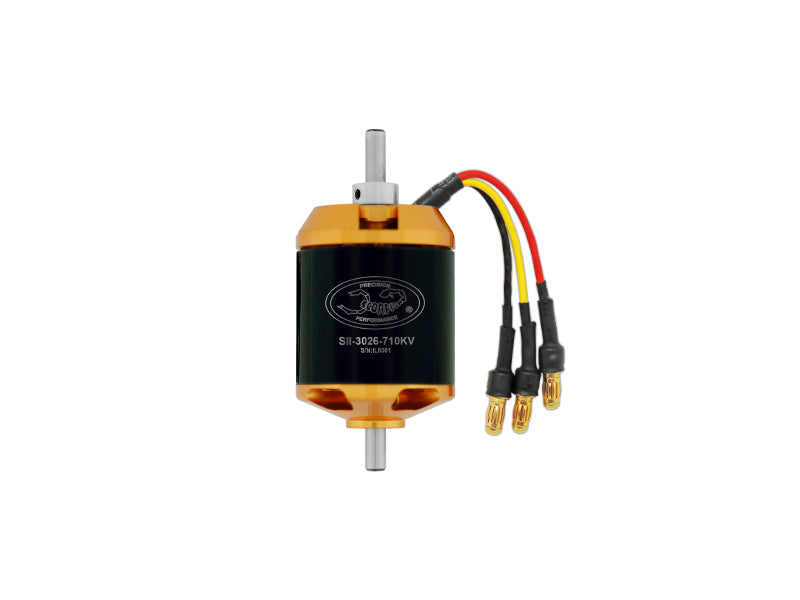

SCORPION SII-3026-710/890/1190KV (V2) MOTORS

Technical specifications:

Stator Diameter 30.0 mm (1.18 in)
Stator Thickness 26 mm (1.02 in)
No. of Stator Arms 12
Magnet Poles 14
Motor Wind 10/7/5 Turn Delta
Motor Wire 16-/21-/26-Strand 0.25mm
Motor Kv 710/890/1190 RPM / Volt
No-Load Current (IO/10V) 1.56/1.90/3.26 Amps
Motor Resistance (Rm) 0.022/0.014/0.008 Ohms
Max Continuous Current 60/70/80 Amps
Max Continuous Power 1000/1025/1050 Watts
Weight 205 Grams (7.23 oz)
Outside Diameter 37.50 mm (1.47 in)
Shaft Diameter 4.98 mm (0.196 in)
Adapter Thread size M6*1.0
Body Length 51.75 mm (2.04 in)
Overall Shaft Length 80.5 mm (3.17 in)
Max Lipo Cell 5/4/4s
Motor Timing 5deg
Drive Frequency 8kHz
