Scorpion

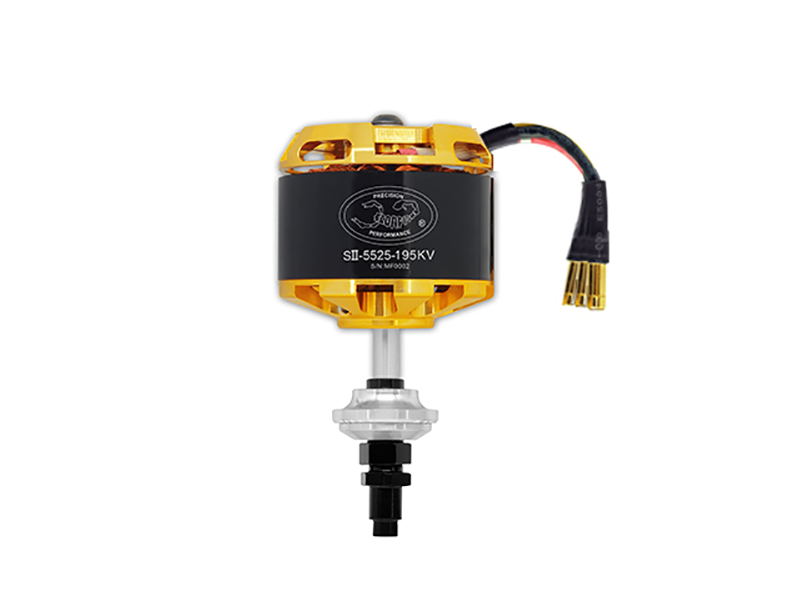

SCORPION SII-5525 固定翼马达 (SII-5525)

P/N: SII-5525

¥2,920.00 CNY
¥2,920.00 CNY ¥2,920.00 CNY
优惠中 待补货

马达 KV 值

SCORPION SII-5525 固定翼马达 - 170KV, 195KV 与 210KV 可选

此马达仅适用于特殊订单。 关于马达采购，请联系我们。 谢谢。

技术规格:

Stator Diameter 55mm (2.165 in)
Stator Thickness 25mm (0.984 in)
No. of Stator Arms 12
Magnet Poles 14
Motor Wind 22/20/17 Turn Delta
Motor Wire 16/18/18-Strand 0.33mm
Motor Kv 170/195/210 RPM / Volt
No-Load Current (Io/10V) 0.78/0.88/1.11 Amps
Motor Resistance (Rm) 0.042/0.034/0.026 Ohms
Max Continuous Current 70/80/90 Amps
Max Continuous Power 3108/2800/3150 Watts
Weight 708 Grams (22.98 oz)
Outside Diameter 66.4 mm (2.614 in)
Shaft Diameter 7.98 mm (0.314 in)
Thread size M8*1.0
Body Length 59.82 mm (2.355 in)
Overall Shaft Length 116 mm (4.567 in)
Max Peak Current 105/120/135 Amps
Max Peak Power 4662/4200/4700 Watts
Max Lipo Cell 12s/10s/10s
Motor Timing 5deg
Drive Frequency 8kHz
