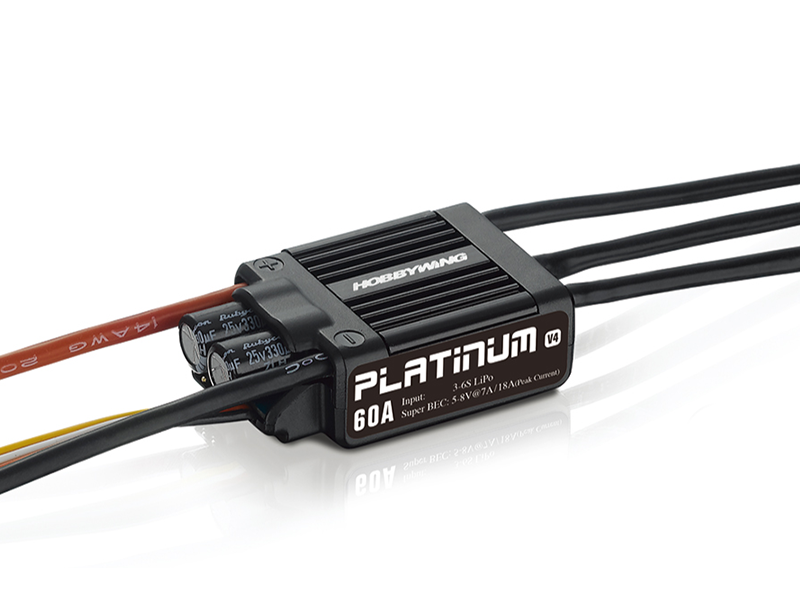

HOBBYWING PLATINUM 60A V4 ESC (HW30215100)

HOBBYWING PLATINUM 60A V4 ESC

Technical specifications:

• Type
• Brushed/Brushless: BL
• High Volt./Regular: Regular
• Specifications
• Cont./Peak Current: 60A/80A

• Input Voltage: 3-6S LiPo
• BEC Output: Switch Mode, 5-8V, 7A
• Wire & Connectors
• Input Wires: Red/Black 14AWG-100mm*1 each

• Output Wires: Black 14AWG-75mm*3
• Input Connectors: No
• Output Connectors: 3.5mm Gold Connectors (Female)
• ESC Programming via
• Transmitter: Not Supported
• LED Program Card: Not Supported
• LED Program Box: Not Supported
• LCD Program Box: Supported
• WiFi Module: Supported
• OTA Programmer: Supported
• Program Port: Program/Throttle Wire

• Firmware
• Firmware Upgrade: Supported
• Size & Weight
• Size: 48.0x30.0x15.5mm

• Weight: 49g

• Applications
• 450-480 Class Heli (Main Blade: 325-360mm)

Package includes:

• ESC

• Accessories and hardware
