Scorpion

SCORPION HK5-4525-535/365KV MOTORS (HK5-4525)

P/N: HK5-4525

$444.00 SGD
$444.00 SGD $444.00 SGD
优惠中 待补货

KV x L

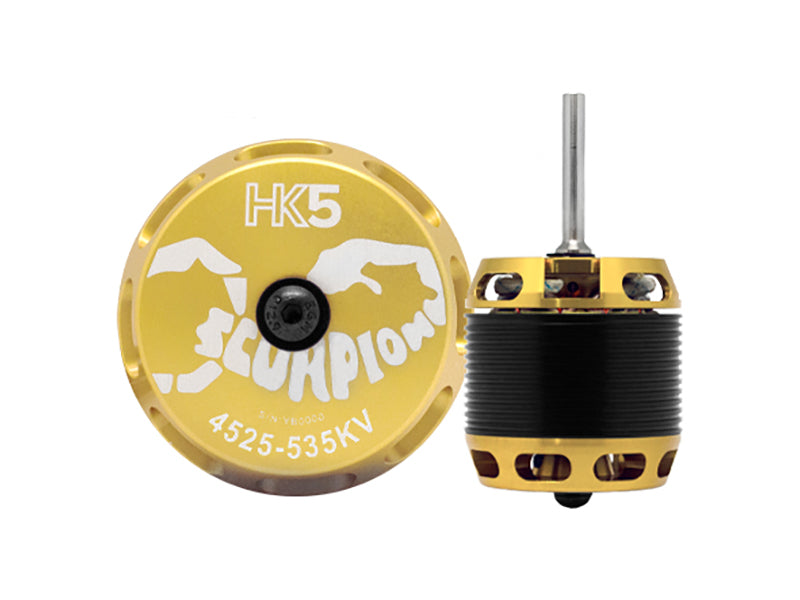

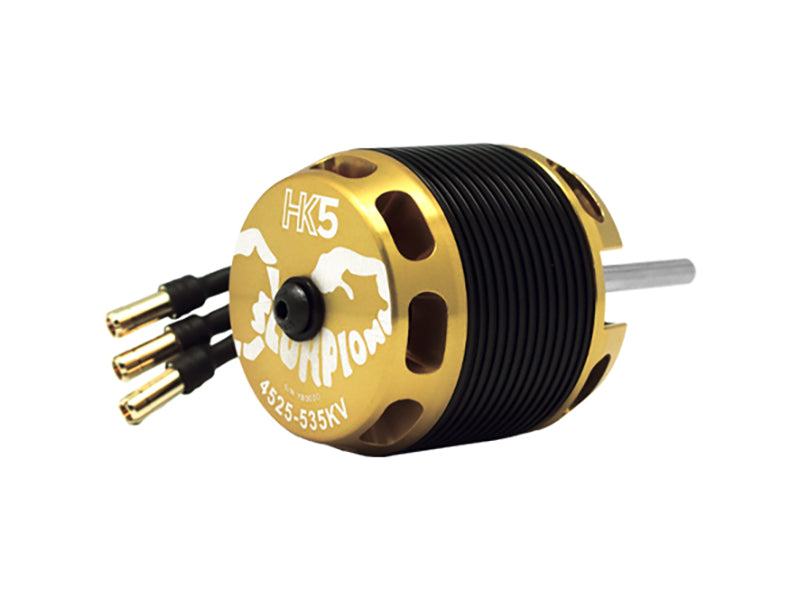

SCORPION HK5-4525-535/365KV MOTORS

Technical specifications:

  • Motor KV: 535/365KV RPM/Volt
  • Weight: 532.0g
  • Motor Body Dimensions: 57.5mm x 61.5mm
  • External Shaft Dimensions: 5.98 x 36/55mm
  • Continuous Current: 115 Amps
  • Continuous Power: 5106 Watts
  • Peak Current: 230 Amps (2 seconds)
  • Peak Power: 10200 Watts (2 seconds)

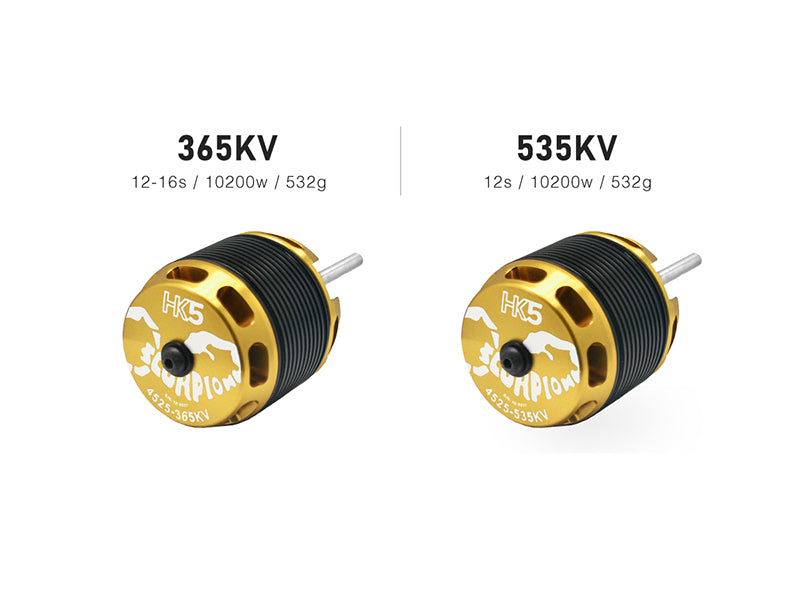

  • Max Lipo Cell*: 12s (535KV) / 12s-16s (365KV)
  • Stator Diameter: 50mm
  • Stator Thickness: 25mm
  • No. Stator Arms: 12
  • No. of Stator Poles: 10
  • Motor Wind: 5+6T YY (535KV) / 8T YY (365KV)
  • Motor Wire: 1.4mm (535KV) / 1.12mm (365KV)
