Scorpion

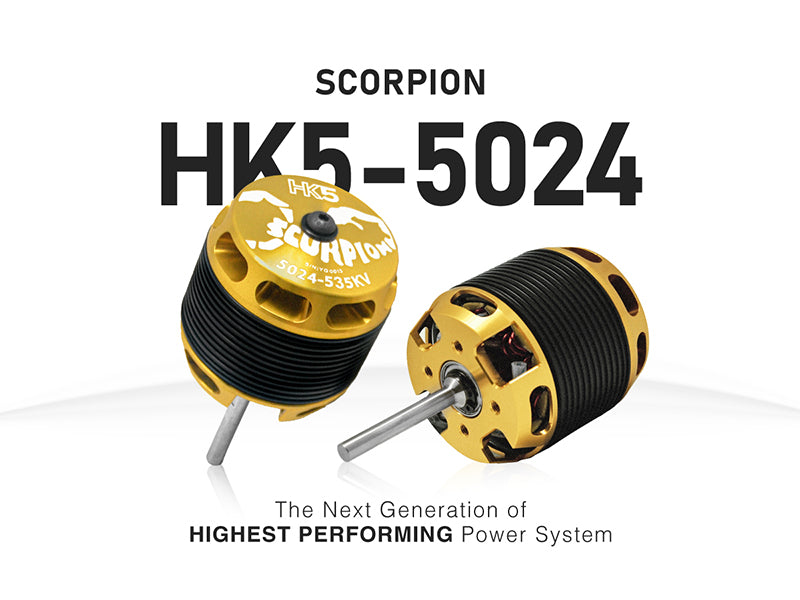

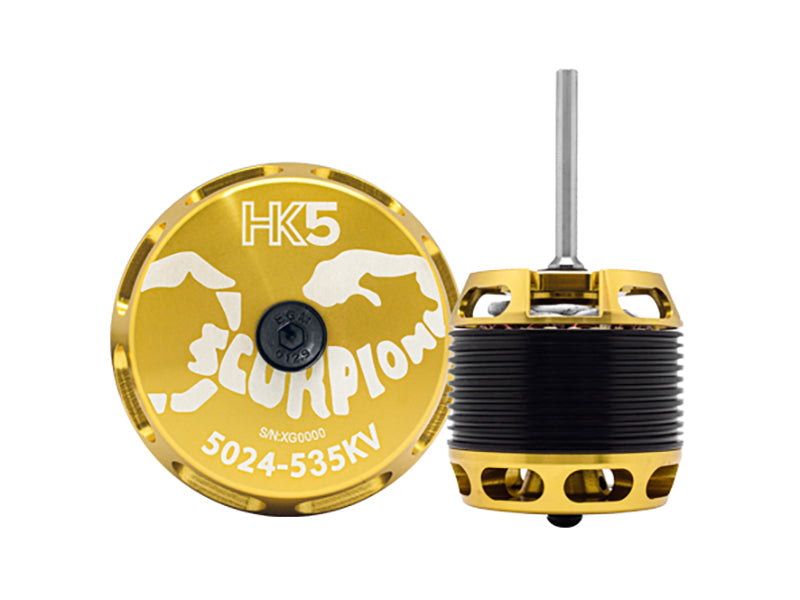

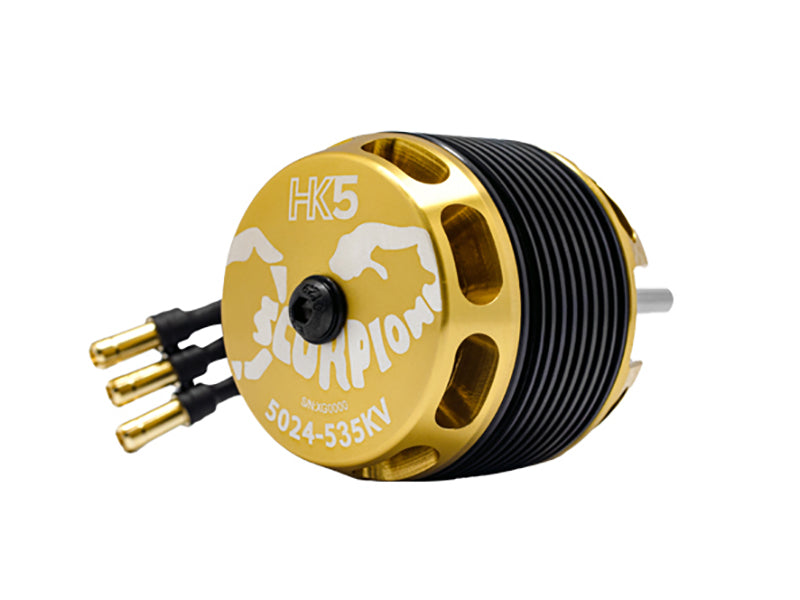

SCORPION HK5-5024-535/475KV MOTORS (HK5-5024)

P/N: HK5-5024

$524.00 SGD
$524.00 SGD $524.00 SGD
优惠中 待补货

KV x L

SCORPION HK5-5024-535/475KV MOTORS (HK5-5024)

Technical specifications:

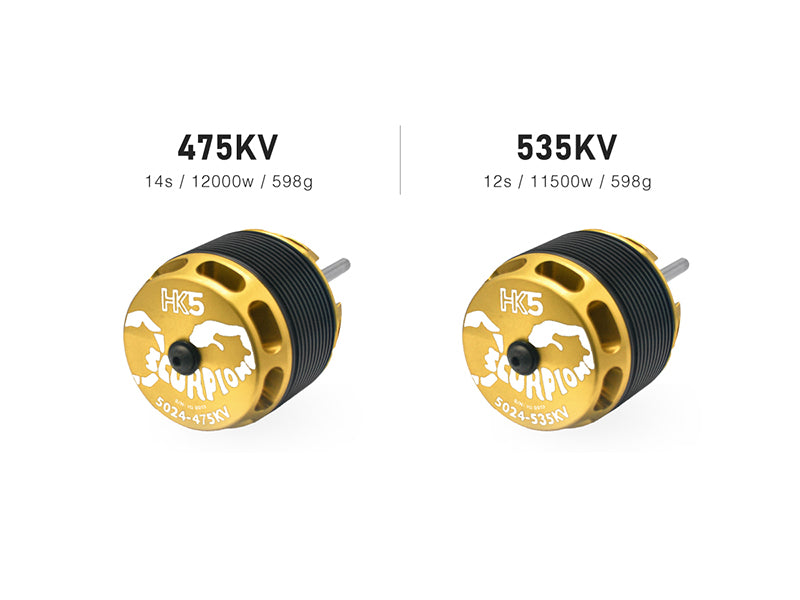

  • Motor KV: 535/475KV RPM/Volt
  • Weight: 598.0g
  • Motor Body Dimensions: 62.8mm x 61.4mm
  • External Shaft Dimensions: 5.98 x 36/55mm
  • Continuous Current: 130 (535KV) / 120 (475KV) Amps
  • Continuous Power: 5772 (535KV) / 6216 (475KV) Watts
  • Peak Current: 260 (535KV) / 230 (475KV) Amps (2 seconds)
  • Peak Power: 11500 (535KV) / 12000 (475KV) Watts (2 seconds)
  • Max Lipo Cell*: 12s (535KV) / 14s (475KV)
  • Stator Diameter: 50mm
  • Stator Thickness: 24mm
  • No. Stator Arms: 12
  • No. of Stator Poles: 10
  • Motor Wind: 5T (535KV) / 5T+6T (475KV)
  • Motor Wire: 1.6mm
