P/N: SG585

Free Shipping within Asia (Except Promotion)

Regular price $748.00 USD
Regular price $748.00 USD Sale price $748.00 USD
Sale Back order

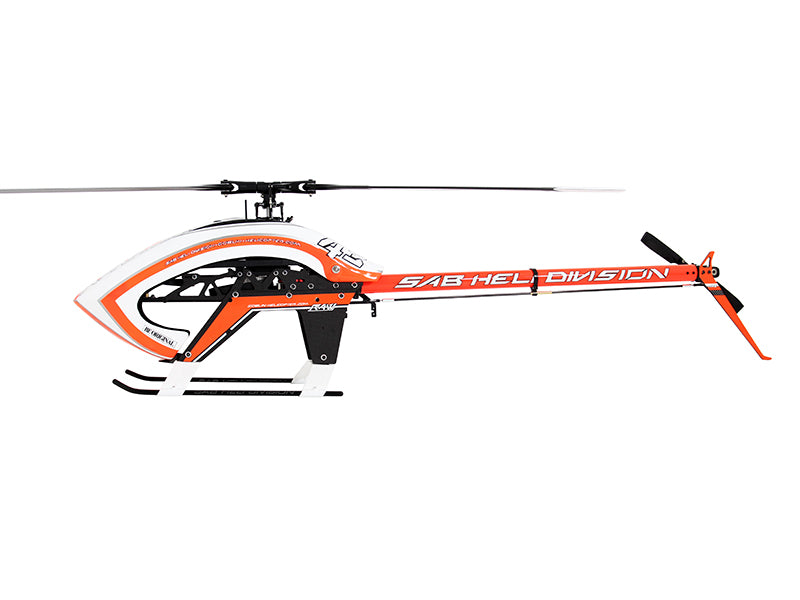

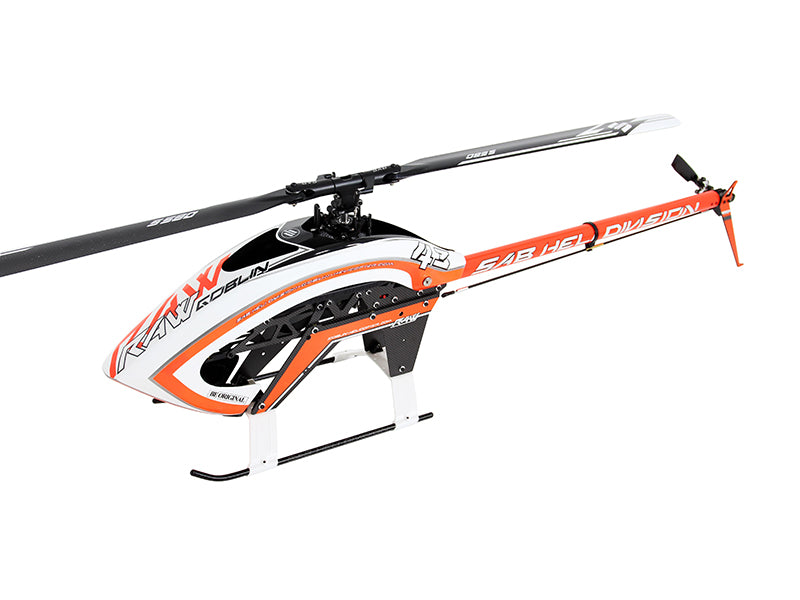

The SAB Goblin RAW 580 White/Orange special edition.

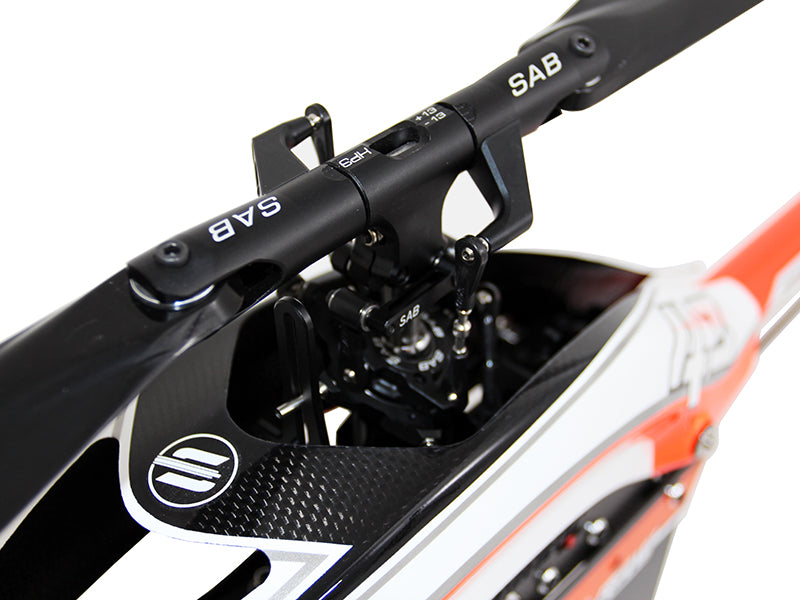

Inspired by Kraken and RAW, this all-new SAB GOBLIN RAW 580 re-defines the 580-600 class.  The RAW 580 features same module from KRAKEN 580 with a incredibly strong and reliable power drive train enclosed in aluminum case.  Ultra light 7075 aluminum and highly adjustable rotor head and super simple tail group. Tail boom is made of 30mm diameter aluminum tube.  Helicopter is extremely simple to maintain.  Main blades size can use up to 600mm.

Technical specifications:

  • Weight: 1740g (w/o. electronics, battery)
  • Main rotor diameter: 1290mm
  • Main blades: 580mm
  • Tail rotor diameter: 260mm
  • Tail blades: 95mm
  • Cyclic servo: Mini 35mm (Standard 40mm option)
  • Tail servo: Standard 40mm
  • Typical Motor: 4025
  • Typical ESC: 6S 120-150A, 12S 100-130A
  • Typical battery: 6S 5000/5800mAh, 12S 2600/3200mAh
  • Main rotor ratio: 11.51-8.63:1
  • Tail rotor ratio: 5.3-4.9:1

Package includes:

  • Helicopter kit*
  • Battery tray w. straps
  • 580mm main blades
  • 95mm tail blades

* Kit does not include motor, ESC and other electronics, need to purchase separately.  Assembly is required.
