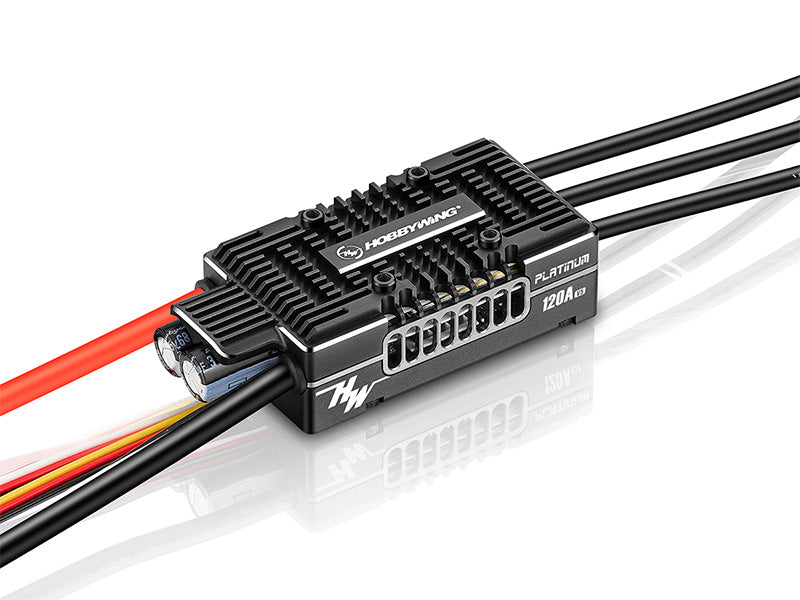

HOBBYWING PLATINUM 120A SBEC V5 ESC (HW30203402)

HOBBYWING PLATINUM 120A SBEC V5 ESC

Technical specifications:

• Type
• Brushed/Brushless: BL
• High Volt./Regular: Regular

• Specifications
• Cont./Peak Current: 120A/150A

• Input Voltage: 3-8S LiPo

• BEC Output: Switch Mode, 5-12V & Cont. 10A, Peak 30A

• Wire & Connectors
• Input Wires: Red/Black 10AWG-150mm*1 each

• Output Wires: Black 10AWG-100mm*3

• Input Connectors: No
• Output Connectors: 4.0mm Gold Connectors (Female)
• ESC Programming via
• Transmitter: Not Supported
• LED Program Card: Not Supported
• LED Program Box: Not Supported
• LCD Program Box: Supported
• WiFi Module: Supported
• OTA Programmer: Supported
• Program Port: Separate Program Port
• Firmware
• Firmware Upgrade: Supported
• Telemetry Functions
• Futaba S.Bus2, Mikado VBar; etc
• Size & Weight
• Size: 83.2x37.1x22.5mm (without fan)

• Weight: 150.4g (without fan)

• Applications
• 420-520 Class Heli (Main Blade: 420-520mm)
• Fixed wings

Package includes:

• ESC

• Accessories and hardware
