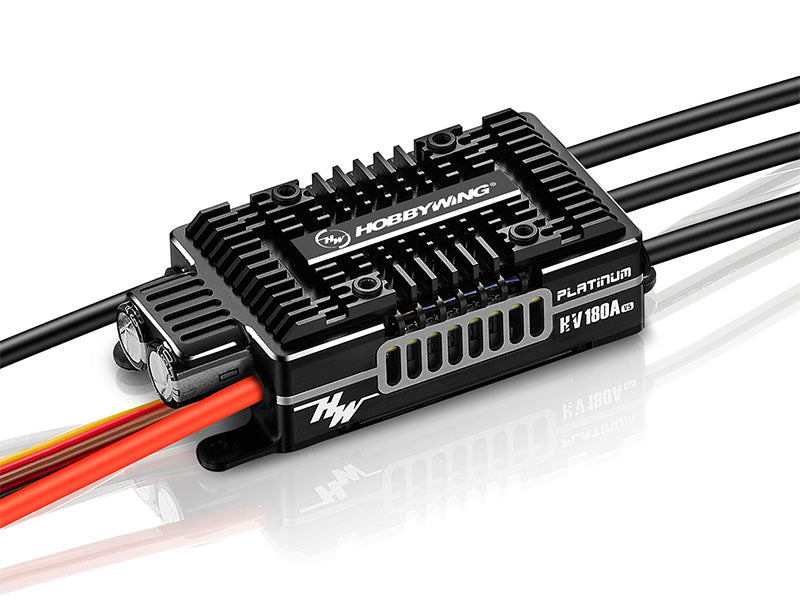

HOBBYWING PLATINUM HV 180A SBEC V5 ESC (HW30209103)

HOBBYWING PLATINUM HV 180A SBEC V5 ESC

Technical specifications:

• Type
• Brushed/Brushless: BL
• High Volt./Regular: High Voltage

• Specifications
• Cont./Peak Current: 180A/260A

• Input Voltage: 6-14S LiPo

• BEC Output: Switch Mode, 5-12V & Cont. 10A, Peak 30A

• Wire & Connectors
• Input Wires: Red/Black 10AWG-255mm*1 each

• Output Wires: Black 10AWG-150mm*3

• Input Connectors: No
• Output Connectors: No
• ESC Programming via
• Transmitter: Not Supported
• LED Program Card: Not Supported
• LED Program Box: Not Supported
• LCD Program Box: Supported
• WiFi Module: Supported
• OTA Programmer: Supported
• Program Port: Separate Program Port
• Firmware
• Firmware Upgrade: Supported
• Telemetry Functions
• Futaba S.Bus2, Mikado VBar; etc
• Size & Weight
• Size: 100.6x45.5x26.1mm (without fan)

• Weight: 250.6g (without fan)

• Applications
• 550-700 Class Heli (Main Blade: 550-700mm)
• Fixed wings

Package includes:

• ESC

• Accessories and hardware
