SCORPION TRIBUNUS III 08-160A ESC SBEC (TRI-3-08-160)

SCORPION TRIBUNUS III 08-160A ESC SBEC

Product Highlights:

• All new design, next level performance. All new PCB and case design, take performance and functionality to the next level.
• Improved hear dissipation, integrated mounting tabs, enclosed capacitors and 2-tone anodizing exterior.
• High power BEC, programmable built-in BEC provides 15A continuous and 30A peak constant power.
• Temperature controlled fan port. optional cooling fan activate and deactivate with temperature.
• Real-time telemetry and data logging. Full data logging for multiple propocols - Mikado VBAR, Futaba SBUS, JETI EXBUS, FR.SKY S.Port, JR DMSS, Spectrum X.bus (with adapter) and others (with unsolicited  protocol).
• Real-time telemetry port provides current, voltage, temperature, consumption, output power, BEC V, RPM, error codes, time stamp.
• Highly programmable, easy to connect with USB Type C programming port for PC and Android device.
• Multiple program modes for any applications - Heli Mode, Airplane Mode.
• Heli Mode provides Internal Governor (store and unstored mode) and External Governor (VBAT, Futaba and others).
• Airplane Mode provides Scorpion proprietary motor control algorithm, adjustable acceleration, break setting, reverse speed capability.
• Designed by Scorpion and designed to be the best!
• Designed and developed by Scorpions own engineers, we offer completely unique and untouchable ESC products.
• From PCB and mechanical design to our proprietary motor control algorithm, we unlock the full potential of brushless motor power, efficiency and reliability.
• Manufactured in Taiwan.

Technical Specifications:

• Max Continuous Current: 160 Amps
• Peak Current: 200 Amps
• Operating Voltage Range: 11-35.0 Volts
• BEC Output Voltage: 5.1V to 12.1V adjustable

• Max Continuous BEC Output: 15 Amps @ 8.1 V

• Peak BEC Output: 30 Amps/1s @ 8.1 V

• On Resistance: 0.33 mOhms *2

• Size: 39.0 x 79.0 x 29.0 mm (1.53 x 3.11 x 1.14 in)

• Mounting Tab Dimensions: 24.0 x 88.0 mm (0.944 x 3.46 In) / M3 bolt
• Weight (Without wire): 165g (5.82 oz)

• Weight (With wire): 205g (7.23 oz)
• Drive Frequency: 8kHz - 32kHz

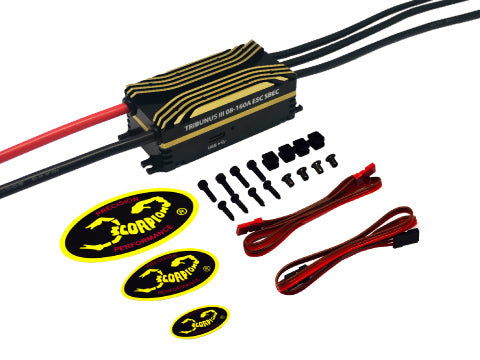

Package includes:

• 1x ESC
• 2x BEC cables
• 1x mounting hardware pack

Weight including packaging:

• 253g
