Scorpion

SCORPION TRIBUNUS II 12-130A ESC SBEC 2022 EDITION (TRI-2-12-130-2022)

P/N: TRI-2-12-130-2022

Regular price $429.99 USD
Regular price $429.99 USD Sale price $429.99 USD
Sale Back order

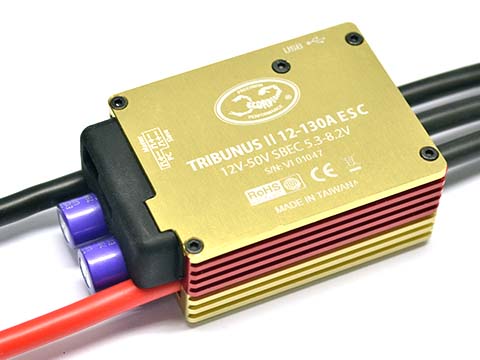

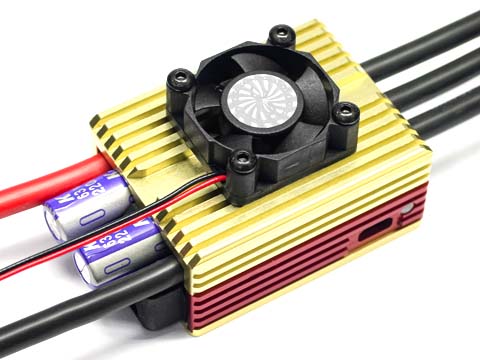

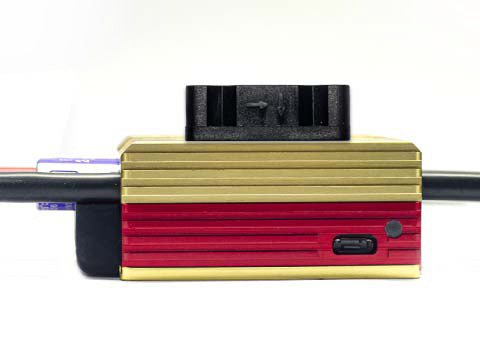

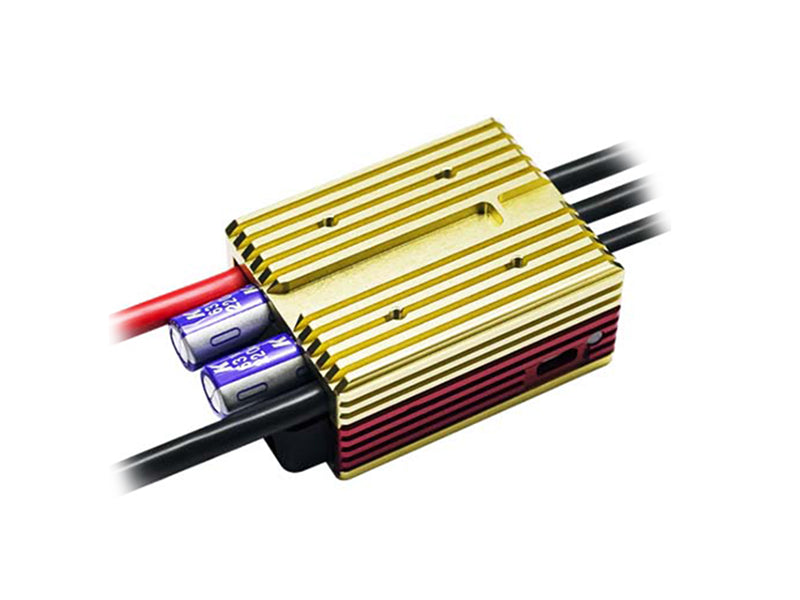

SCORPION TRIBUNUS II 12-130A ESC SBEC 2022 EDITION

Tribunus II 12-130A is a great ESC mid-size airplanes and 570-620 helicopters using 12S power.

Product Description:

  • Airplane and Heli mode
  • Stored and unstored Governor, external governor
  • Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 and Futaba
  • ESC setup can be set by Mikado V control Radio
  • PC connectivity, Android connectivity (OTG cable needed) , V link II Cable (sold separately) plus Diode adapter (included) cable needed
  • Supported Hv Li battery 12S total 52V
  • Size: 75.3 x 44.3 x 25.7 mm
  • Weight: 198g

Technical Specifications:

  • Max Continuous Current: 130 Amps
  • Peak Current: 180 Amps
  • Operating Voltage Range: 14-52 Volts
  • BEC Output Voltage: 5.1V to 8.1V adjustable
  • Max Continuous BEC Output: 10 Amps @ 8.1 V
  • Peak BEC Output: 30 Amps/1s @ 8.1 V
  • On Resistance: 0.7 mOhms *2
  • Size: 75.3 x 44.3 x 25.8 mm (2.96 x 1.74 x 1.01 in)
  • Weight (Without Connectors): 198 g (6.98 oz)
  • Drive Frequency: 8kHz - 32kHz
